TTL-232RG-VIP-WE
FTDI
| Quantity: | |
|---|---|
Part No: TTL-232RG-VIP-WE
USB to UART cable features voltage reference input for setting UART signalling levels.
Data Rates: 3MBaud
Features:
The TTL-232RG-VIP-WE is a USB to Serial (TTL level) converter cable which allows for a simple way to connect TTL interface units to USB. This version of FTDI’s USB to TTL serial adapter cables allows the user to supply the VCCIO to set the IO logic levels between 1.8V and 5V

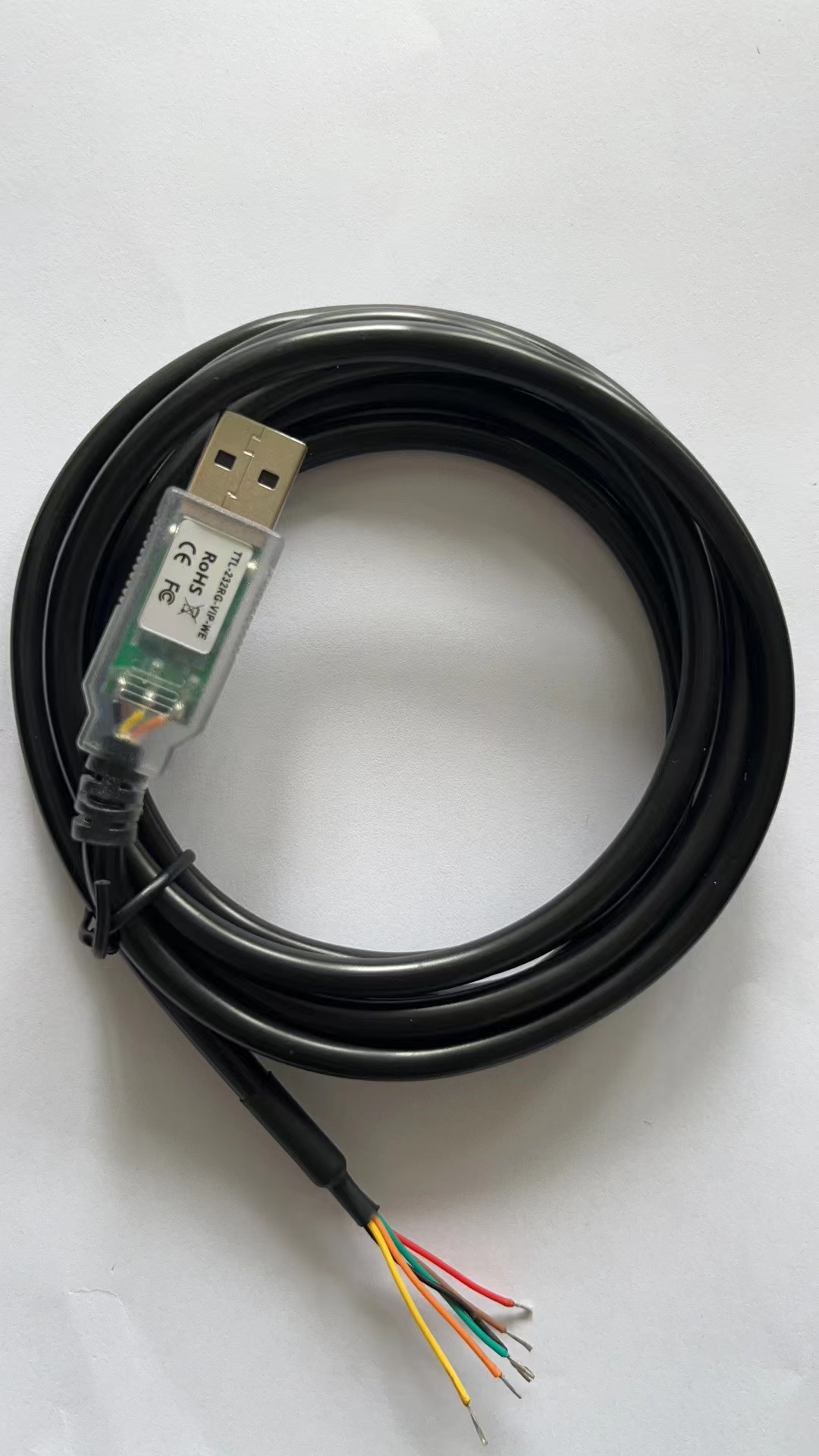

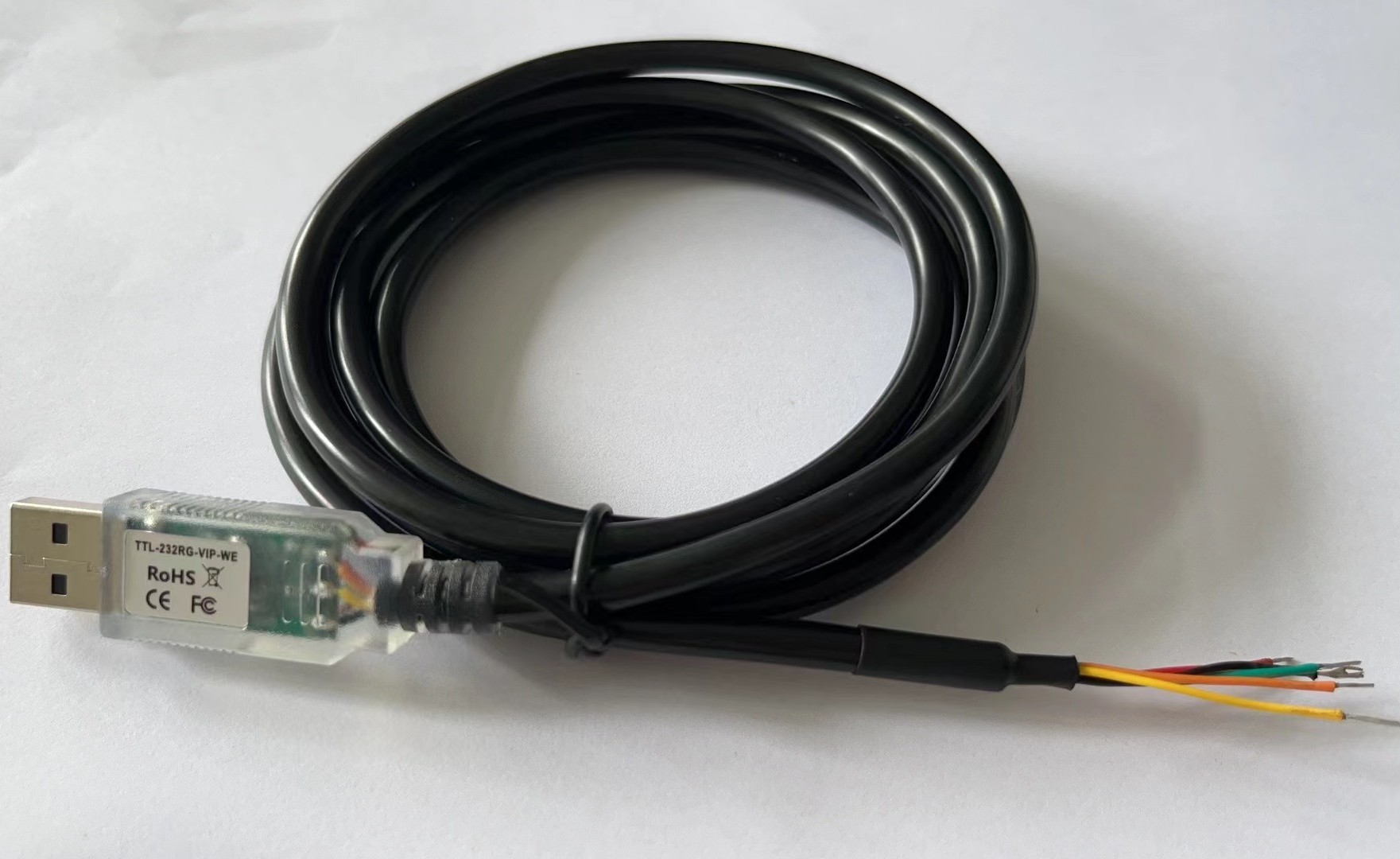

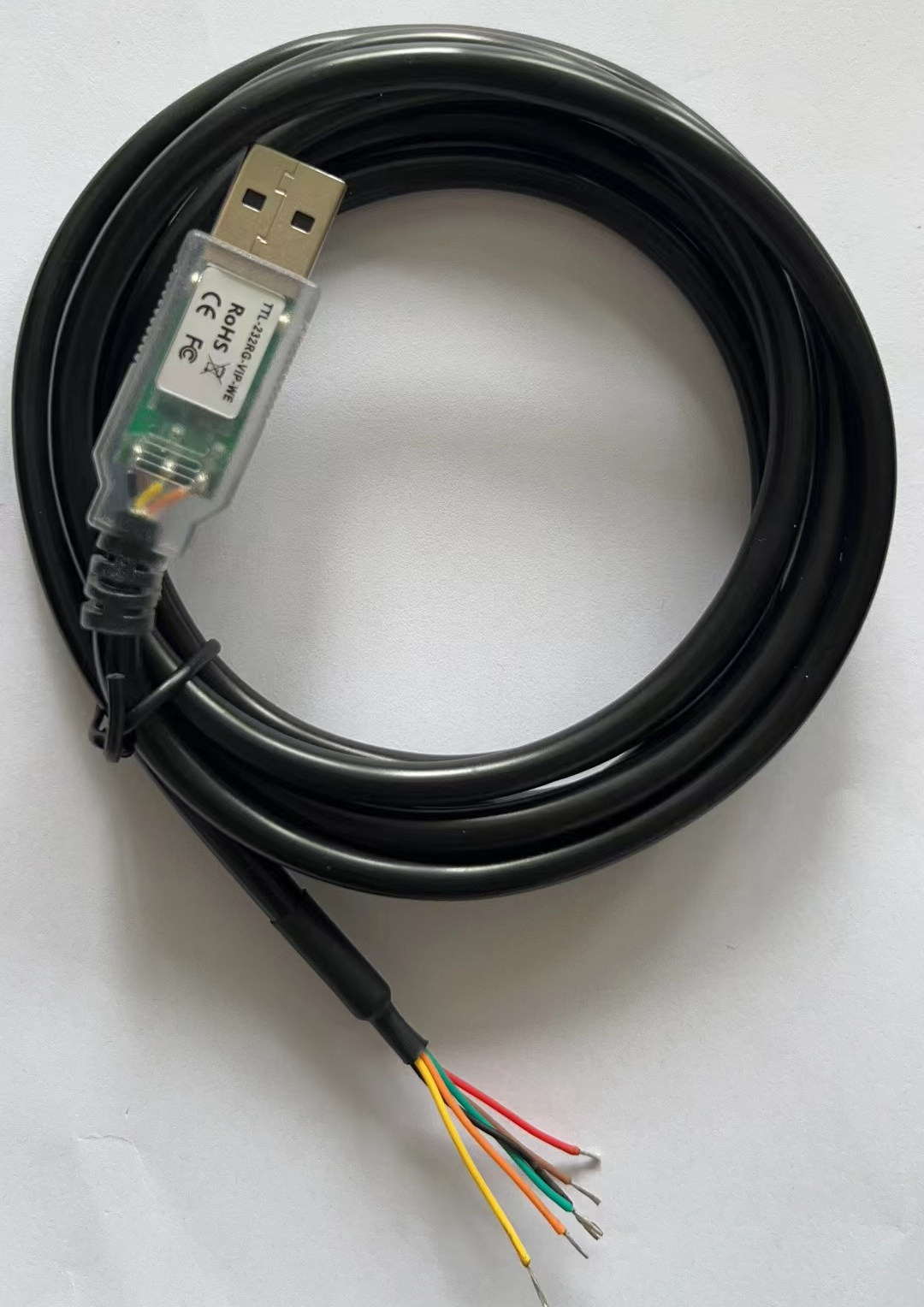

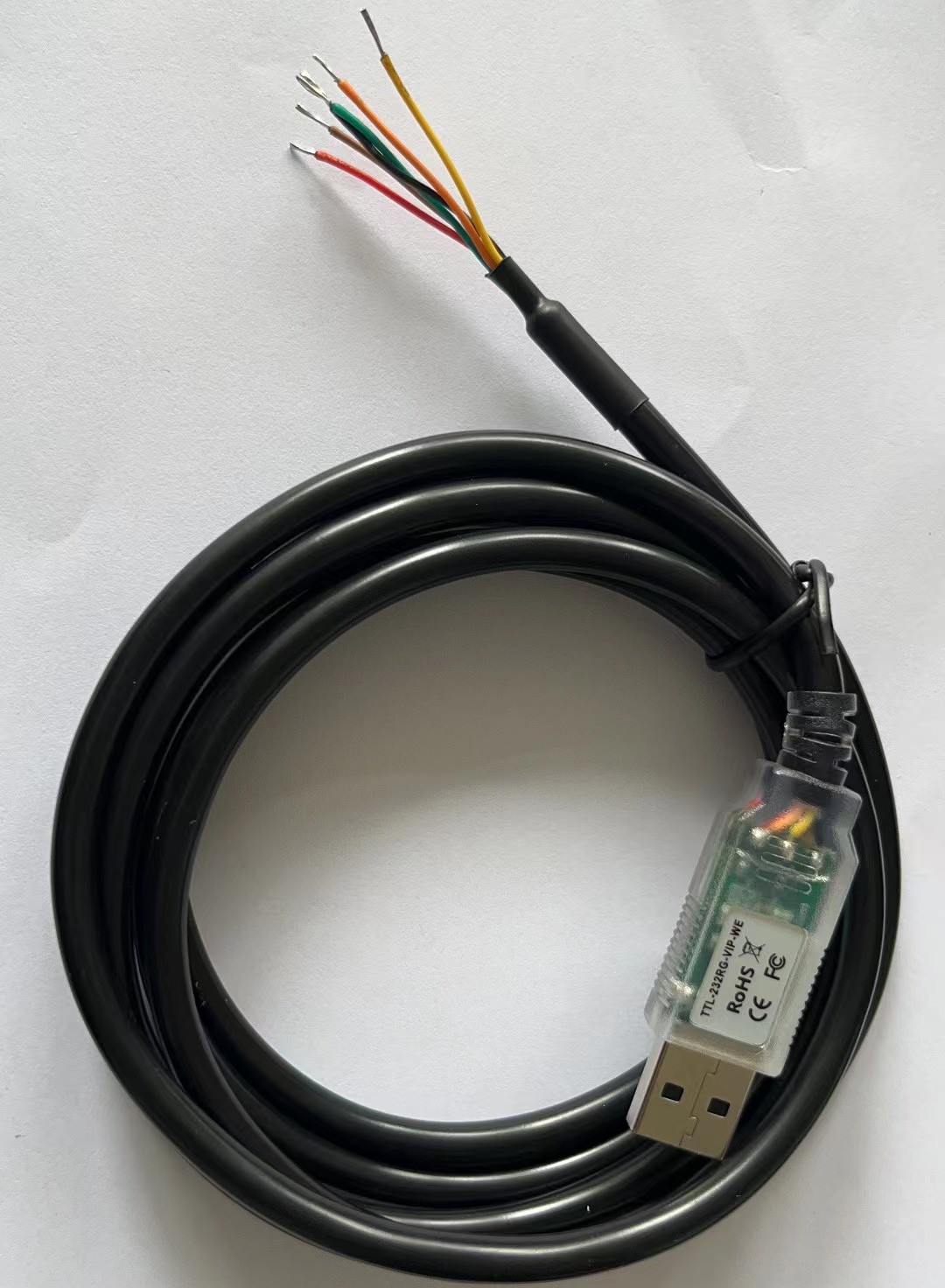

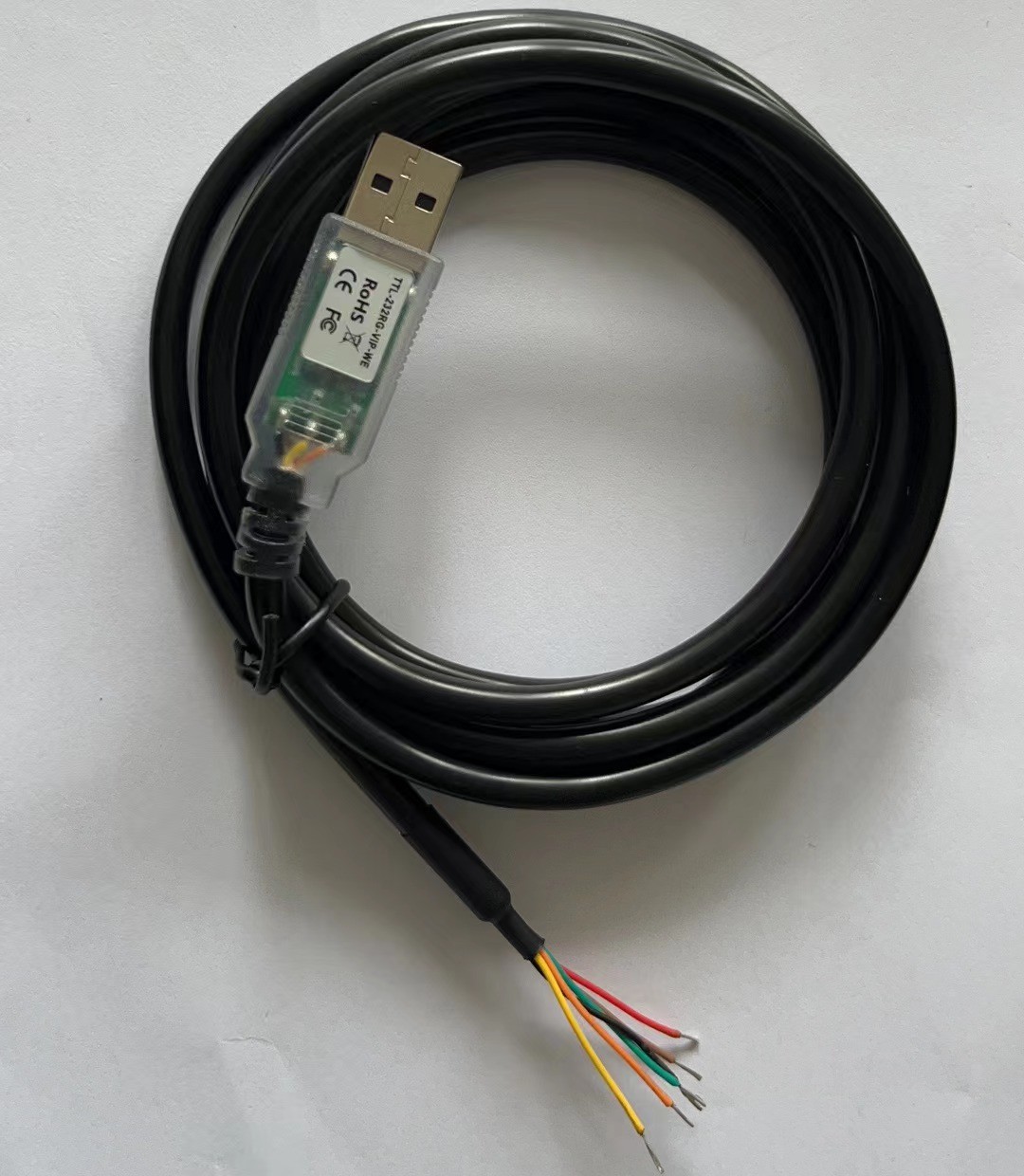

The TTL-232RG-VIP-WE uses a FT232RQ IC which is housed inside the USB ‘A’ connector, and is terminated at the end of a 1.8 meter cable with RXD, TXD, RTS, CTS and GND signals provided
The cables are designed to provide USB based interfacing to UART interface units such as MCUs, CPUs and FPGAs which run at a range of voltage levels.
The TTL-232RG-VIP-WE is fully RoHS compliant and is supplied loose – packed in an anti-static bag. It is CE, FCC and UKCA approved..
Ftdi USB TTL Serial Cable TTL-232RG-VIP-WE
Fast charging cable and data transfer line
Cable length(can be customized), pure copper wire core, PVC jacket, OD 3.5mm, Die-casting, support 3A current
Support:
Compatible with Windows 10, 8, 8.1, 7 (32, 64-bit), Android, 2008/XP/Vista/CE; ideal USB 2.0 debug cord for Vendor ID re-write, router, GPS, set top box, transmitter, flash firmware on hard drive, etc

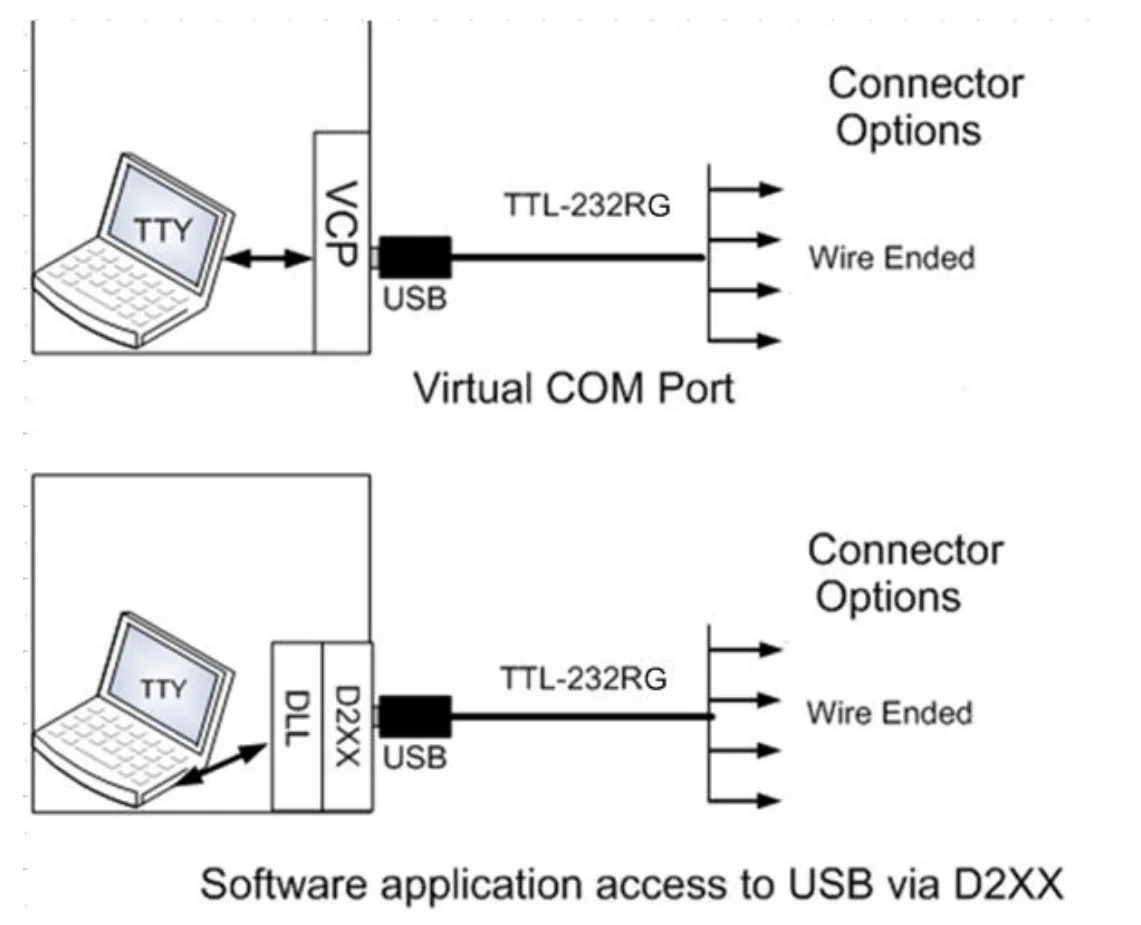

The TTL-232RG-VIP-WE is an USB to UART cable with TTL voltage levels incorporating FT232RQ USB to serial UART interface IC which handles all the USB signalling and protocols. The cables provide a fast, simple way to connect devices with a logic level serial interface to USB. It contains a small internal electronic circuit board, utilising the FT232R, which is encapsulated into the USB connector end of the cable. The other end of the cable is wire ended. The cables can be used for TTL or interface logic over a range to voltage levels. The USB side of the cable is USB powered and is USB 2.0 full speed compatible. The cable is 1.8m long and supports a data transfer rate up to 3Mbaud. It supports the FTDIChip-ID, with a unique USB serial number programmed into the FT232R. This feature can be used to create a security or password protected file transfer access using the cable. This cables require USB drivers, which are used to make the FT232R in the cable appear as a virtual COM port.
Any input voltage can be supplied by the customer from 1.8V (min value of VCCIO) to +5.25V
USB 2.0 (12Mb/s) full speed compatible
Connect directly to a microcontroller UART or I/O pins
UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd/even/mark/space/no parity
Internal EEPROM with user writeable area
UHCI/OHCI/EHCI host controller compatible
Voltage output power allows external logic to be powered from the USB port
Entire USB protocol handled by the electronics in the cable USB
Six way outputs provide Tx, Rx, RTS#, CTS#, VCC and GND
Low USB bandwidth consumption
Communications & Networking, Sensing & Instrumentation, Industrial, Security, Automotive
Support all customization according customer requirement 100%
