TTL-232RG-VREG1V8-WE
FTDI
| Quantity: | |
|---|---|
USB to UART cable Supports +1.8V TTL level UART signals
Data Rates: 3MBaud
USB Speed: Full Speed (12Mbps)
Interfaces: UART
USB Connector: Type A
End Connector: Wire ended
Cable Length: 1.8m
Cable Details: 6 core, 5mm UL2464 24 AWG
Packages: N/A
Channels: 1
I/O Voltage: 1.8V
USB Class: FTDI Drivers
Virtual Com Port: Yes
Max Power Output: +1.8V / 100mA
FTDI Internal IC: FT232R
Operating Temperature: -40°C to +85°C

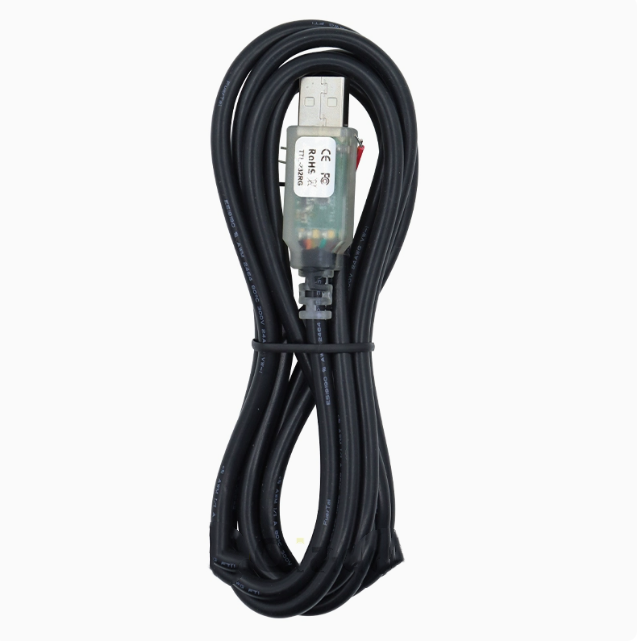

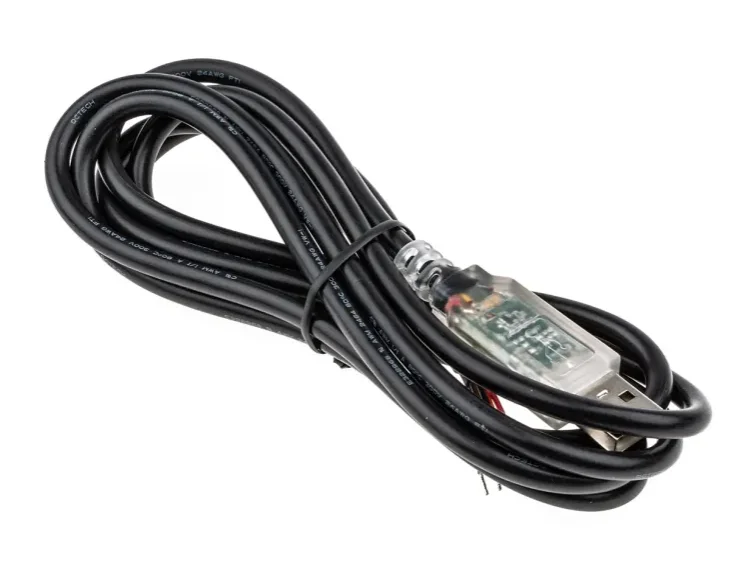

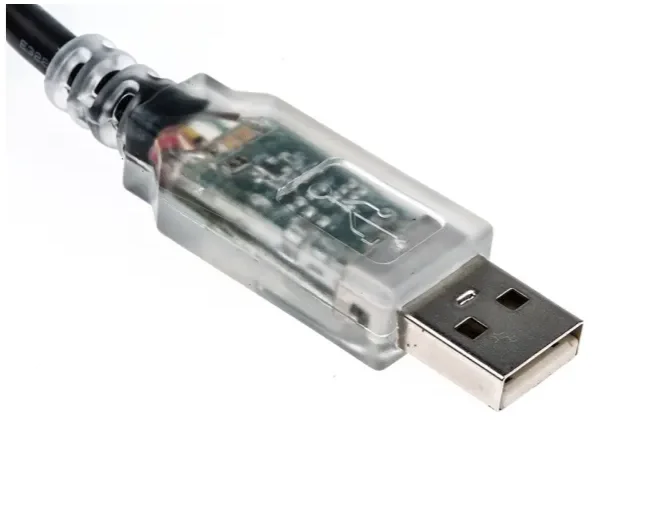

The TTL-232RG-VREG1V8-WE is an USB to UART cable with +1.8V TTL level UART signals incorporating FT232RQ USB to serial UART interface IC which handles all the USB signalling and protocols. The cables provide a fast, simple way to connect devices with a logic level serial interface to USB. It contains a small internal electronic circuit board, utilising the FT232R, which is encapsulated into the USB connector end of cable. The other end of cable is wire ended. The cables can be used for TTL or interface logic over a range to voltage levels. The USB side of the cable is USB powered and is USB 2.0 full speed compatible. The cable is 1.8m long and supports a data transfer rate up to 3Mbaud. It supports the FTDIChip-ID, with a unique USB serial number programmed into the FT232R. This feature can be used to create a security or password protected file transfer access using the cable. This cables require USB drivers, which are used to make the FT232R in the cable appear as a virtual COM port.
Maximum output of 100mA on VCC
USB 2.0 (12Mb/s) full speed compatible
Connect directly to a microcontroller UART or I/O pins
UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd/even/mark/space/no parity
Internal EEPROM with user writeable area
UHCI/OHCI/EHCI host controller compatible
Voltage output power allows external logic to be powered from the USB port
Entire USB protocol handled by the electronics in the cable USB
Six way outputs provide Tx, Rx, RTS#, CTS#, VCC and GND
Low USB bandwidth consumption
Communications & Networking, Sensing & Instrumentation, Industrial, Security, Automotive
| TTL-232RG-VSW3V3-PCB |
| TTL-232RG-VREG3V3-WE |
| TTL-232RG-VREG1V8-WE |
| TTL-232RG-VSW3V3-WE |
| TTL-232RG-VSW5V-WE |
16. Custom versions also available (subject to MOQ).
