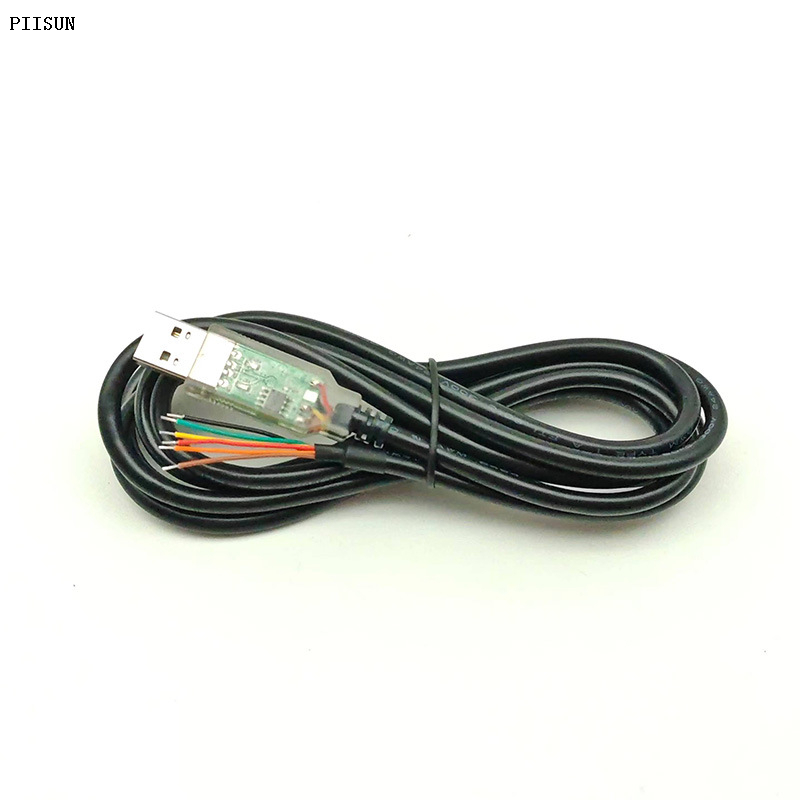

TTL-232RG-VSW5V-WE  USB to TTL cable w/ Embedded Electronics, LEDs, 5V/450mA, Wire EndedUSB to UART cable Supports +5V based TTL level UART signals

• The PIISUN USB to UART connector is perfect for easily connecting devices with TTL level serial communication to a USB port. It uses the FT232R IC to handle all the tasks of transferring USB data to UART serial data. With a data speed of 3MBaud and a maximum throughput of 12Mbps, this connector ensures fast and reliable data transfer. It features a Type A USB connector and a completed end connector, making it compatible with a wide range of devices. The 1.8m cable length provides flexibility and convenience in connecting devices.


Designed with 6 points and utilizing UL2464 24 AWG interface details, this connector is durable and ensures efficient signal transmission. It comes with FTDI drivers, allowing for easy installation and compatibility with various operating systems. It supports a virtual COM port, providing a convenient means of communication between devices. With a maximum power output of 5V/50mA, it ensures sufficient power supply for connected devices.

The TTL-232RG-VSW5V-WE model is specifically designed to support 5V TTL level UART signals, making it suitable for a wide range of applications. Manufactured by PIISUN, a reputable brand known for producing high-quality electronic products, this connector is reliable and trustworthy. It is available in English-US language and is designed with a professional tone, ensuring clear and effective communication.·

Typical Applications

• USB to Serial TTL Level Converter

• Upgrading Legacy Peripherals to USB

• Interface Microcontroller UART or I/O to USB

• Interface FPGA / PLD to USB

• Interface to FTDI VDRIVE2 or VMUSIC2 modules.

• Interface USB to none-sta

Replace MAX232 type level shifters allowing for direct connection of products to PC via USB

• USB Instrumentation PC interface

• USB Industrial Control

• USB Software / Hardware Encryption Dongles

The following Table 1.1 gives details of the available TTL-232RG generic cables

Features

• TTL-232RG generic converter cable provides a USB to TTL Serial interface with various logic levels. • On board FT232RQ provides single chip USB to asynchronous serial data transfer interface.

• Entire USB protocol handled by the electronics in the cable USB.

• Connect directly to a microcontroller UART or I/O pins.

• UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.

• Fully assisted hardware (RTS#/CTS#) or X-On / X-Off software handshaking.

• Data transfer rates from 300 baud to 3 Mbaud at TTL levels.

• Internal EEPROM with user writeable area.

• Wide range of output drive voltages 1.8V to 5.0V safe TTL inputs makes the TTL-232RG easy to interface to 5.0V MCU’s.

• FTDI’s royalty-free VCP allow for communication as a standard emulated COM port and D2XX ‘direct’ drivers provide DLL application programming interface.

Support for FT232RQ FTDIChip-ID™ feature for improved security.

• Voltage output power allows external logic to be powered from the USB port.

• Cable can be used to accept IO voltage from application interface logic allowing users to supply IO voltage levels.

• 6 way outputs provide Tx, Rx, RTS#, CTS#, VCC and GND.

• Low USB bandwidth consumption.

• UHCI / OHCI / EHCI host controller compatible.

• USB 2.0 (12Mb/s) Full Speed compatible.

• -40°C to +85°C operating temperature range.

• Cable length is 1.80m (6 feet).

Custom versions also available (subject to MOQ).
