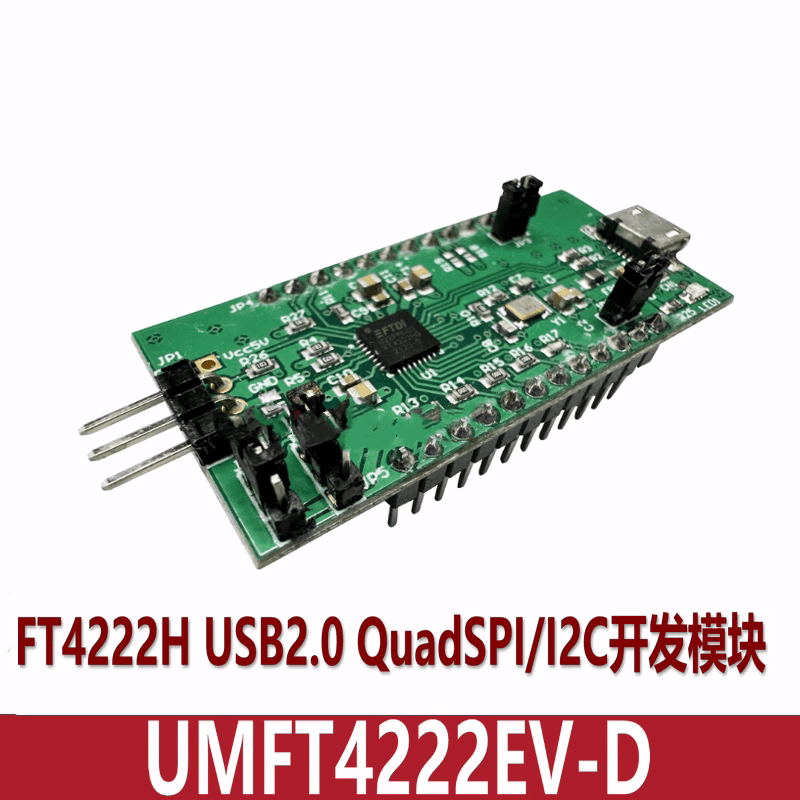

UMFT4222EV-D FT4222H evaluation module, USB Hi-Speed to SPI/I2C Master/Slave

UMFT4222EV-D FT4222H evaluation module, USB Hi-Speed to SPI/I2C Master/Slave

The UMFT4222EV-D is a development module which uses the FTDI FT4222H, a Hi-Speed USB2.0 to QuadSPI/I2C device controller in compact 32-pin QFN package. FT4222H requires an external Crystal (12MHz) for the internal PLL to operate. It supports multi-voltage IO, 3.3V, 2.5V or 1.8V. It also provides 128 Bytes of one-time-programmable (OTP) memory space for storing vendor specific information. The FT4222H contains SPI/I2C configurable interfaces. The SPI interface can be configured as master mode with single, dual, or quad bits data width transfer or slave mode with single bit data width transfer. The I2C interface can be configured as master or slave mode
The UMFT4222EV is supplied as a small PCB which is designed to plug into a standard 0.8″” wide 24 pin DIP socket. All components used, including the FT4222H are Pb-free (RoHS compliant)

Model:
UMFT4222EV-D
Brand:
PIISUN

Quantity:
Availability:





Inquire Add to Basket

Product Description

UMFT4222EV-D FT4222H evaluation module, USB Hi-Speed to SPI/I2C Master/Slave, VQFN-32

Hi-Speed USB2.0 to QuadSPI/I2C Bridge IC Development Module for FT4222HQ-D

Data Rates: Up to 53.8Mbps in QuadSPI master mode
Interfaces: SPI/I2C/GPIO
USB Connector: Micro B
Packages: N/A
Channels: Up to 4 (depending on mode)
I/O Connector: 0.8” wide 24 pin DIP
I/O Voltage: 1.8V to 3.3V
USB Class: Vendor
Virtual Com Port: No
FTDI Internal IC: FT4222H

UMFT4222EV-D (1)

T4222H evaluation module with D version chip. The UMFT4222EV is a development module which uses FT4222H, a Hi-speed USB2.0 to QuadSPI/I2C bridge in compact 32-pin QFN package. The FT4222H requires an external crystal (12MHz) for the internal PLL to operate. It supports multi-voltage IO, 3.3V, 2.5V or 1.8V. It also provides 128 bytes one-time-programmable (OTP) memory space for storing vendor specific information. The FT4222H contains SPI/ I2C configurable interfaces.

UMFT4222EV is fully compliant with the USB 2.0 specification
SPI interface
Configurable GPIOs controlled by application software via USB bus
Support battery charger detection
Bus-powered and self-powered USB power configurations
Integrated power-on-reset circuit
True 3.3V CMOS drive output and TTL input
UMFT4222EV is supplied as a small PCB designed to plug into a standard 0.8" wide 24 pin DIP socket

Typical Applications

 USB to single mode SPI master controller

 USB to dual mode SPI master controller

 USB to quad mode SPI master controller

 USB to single SPI slave controller

 USB to I2C master interface controller

 USB to I2C slave interface controller

 Utilising USB to add system modularity

 Incorporate USB interface to enable PC transfers for development system communication

 USB Industrial Control

 USB Data Acquisition

 USB dongle implementations for Software/ Hardware Encryption and Wireless Modules

 Detect USB dedicated charging ports, to allow for high current battery charging in portable devices.

FT4222H evaluation module Development Module for FT4222HQ-D ft4222h evaluation board UMFT4222EV - USB2.0 to QuadSPI/I2C Bridge UMFT4222EV Development Module - FTDI USB2.0 to QuadSPI/I2C Bridge Development Module FT4222H evaluation module with D version chip. USB2.0 Hi-Speed Device Controller
