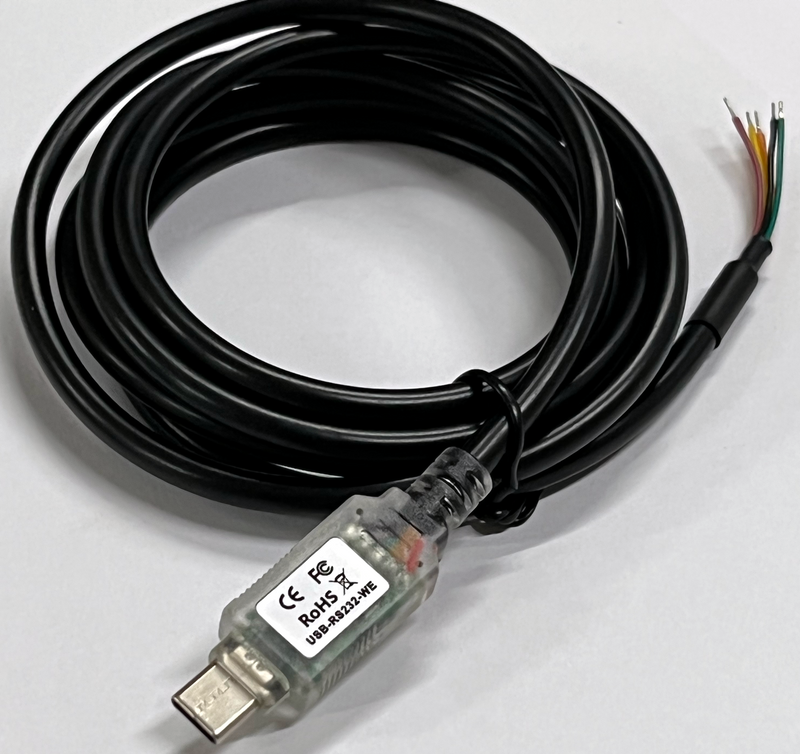

USB-RS232-WE-1800-BT
PIISUN
| Quantity: | |
|---|---|
Introducing the USB C Type to RS232 Serial Cable, a reliable and efficient solution for seamless connectivity between USB C devices and RS232 serial devices. This high-quality cable provides a simple, plug-and-play interface, with no additional drivers or software required. Designed for professionals across various industries, it supports data transfer rates from 300 baud to 1 Mbaud and operates within an extended temperature range of -40°C to +85°C. With its durable construction and customization options, this cable ensures stable and efficient data transfer, ideal for applications such as barcode scanners, modems, and industrial equipment.
| Parameter | Value |
|---|---|
| Cable Type | USB-C to RS232 |
| Length | 0.15 meters |
| Material | PVC |
| Color | Transparent (USB-C), Black (RS232 D-Sub) |
| Connectors | USB-C plug, 9-pin D-Sub (RS232) |
| Chipset | FTDI FT232RL |
| Data Transfer Speed | Up to 1 Mbaud |
| Temperature Range | -40°C to +85°C |
| Part Number | Description | End Connector* | Cable details |
| USB-RS232-WE-1800-BT-0.0 | USB to UART cable with RS232 level UART signals. Black cable, Transparent USB connector 0.0 = RED wire is 0V | Wire Ended (no connector) | 1.8m cable,6 core, 26 AWG, diam=5mm |
| USB-RS232-WE-5000-BT-0.0 | Wire Ended (no connector) | 5m cable,6 core, 26AWG, diam=5mm | |
| USB-RS232-WE-1800-BT-3.3 | USB to UART cable with RS232 level UART signals. Black cable, Transparent USB connector 3.3 = RED wire is 3.3V | Wire Ended (no connector) | 1.8m cable,6 core, 26 AWG, diam=5mm |
| USB-RS232-WE-5000-BT-3.3 | Wire Ended (no connector) | 5m cable,6 core, 26AWG, diam=5mm | |
| USB-RS232-WE-1800-BT-5.0 | USB to UART cable with RS232 level UART signals. Black cable, Transparent USB connector 5.0 = RED wire is 5V | Wire Ended (no connector) | 1.8m cable,6 core, 26 AWG, diam=5mm |
| USB-RS232-WE-5000-BT-5.0 | Wire Ended (no connector) | 5m cable,6 core, 26AWG, diam=5mm | |
| USB-RS232-CC-LLLL-CU-PWR | USB to UART cable with RS232 level UART signals. C = cable colour (B black or T transparent), U = USB connector colour (Bblack or T transparent) PWR = power supply output on red wire. 0.0 = 0V, 3.3=3.3V, 5.0=5V) | CU = Connector description. | LLLL = Length of cable. |
No need for additional drivers or software installations—simply connect the cable to your USB C device and RS232 serial device. This saves time and ensures a seamless experience.
Crafted with high-quality materials, this cable ensures long-lasting durability, making it suitable for both personal and professional applications.
The cable is compatible with a wide range of USB C devices such as laptops, tablets, and smartphones, as well as RS232 serial devices like barcode scanners and modems.
Tailor the cable length, connector type, and power supply to your specific needs, ensuring a perfect fit for your project requirements.
The USB C to RS232 cable supports reliable data transfer, making it ideal for various industries including telecommunications, automation, and industrial equipment.
This USB C to RS232 Serial Cable is perfect for use in industries that require reliable data transfer between modern USB C devices and legacy RS232 serial devices. Common applications include:
Industrial Automation: Connecting USB C devices to industrial machinery and control systems.
Telecommunications: Interfacing USB C laptops and tablets with RS232 modems and communication equipment.
Point of Sale (POS) Systems: Bridging the connection between barcode scanners and computers.
Laboratory Equipment: Connecting USB C-enabled devices to older scientific equipment requiring RS232 connectivity.
A: No, the cable features plug-and-play functionality, so no extra software or drivers are needed.
A: The cable is available in two lengths: 1.8 meters and 5 meters, allowing you to choose based on your specific needs.
A: Yes, the cable is designed to be compatible with all USB C-enabled devices, including laptops, tablets, and smartphones.
A: Yes, the cable can be customized with different power supply options (0.0V, 3.3V, 5V) according to your project’s requirements.
