USB NMC-2.5m
PIISUN
Availability: | |
---|---|
Quantity: | |

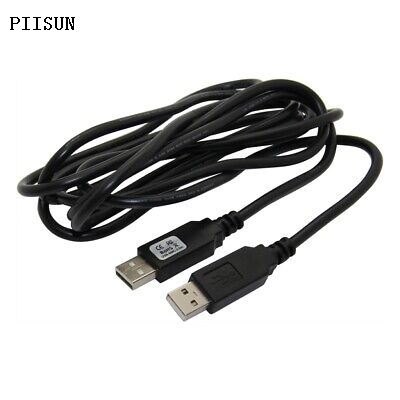

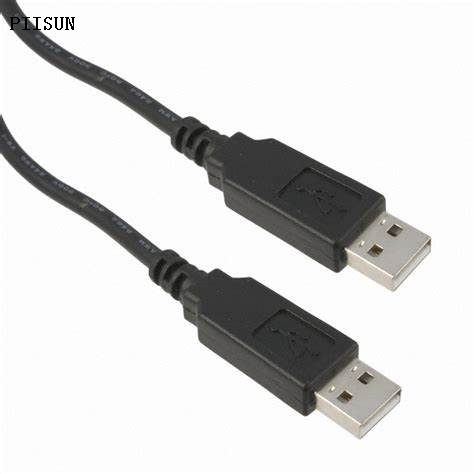

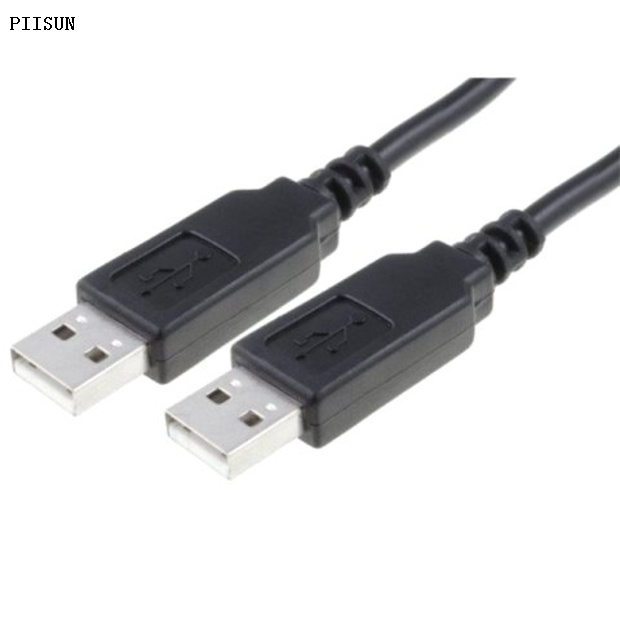

USB to USB Null Modem Cable/Cable, USB to USB NMC, FT232R, 2.5m
Data Rates: 3MBaud
USB Speed: Full Speed (12Mbps)
USB Connector: Type A
End Connector: USB Type A
Cable Length: 2.5m
Cable Details: -
Max Power Output: -
FTDI Internal IC: FT232R
Operating Temperature: -40°C to +85°C

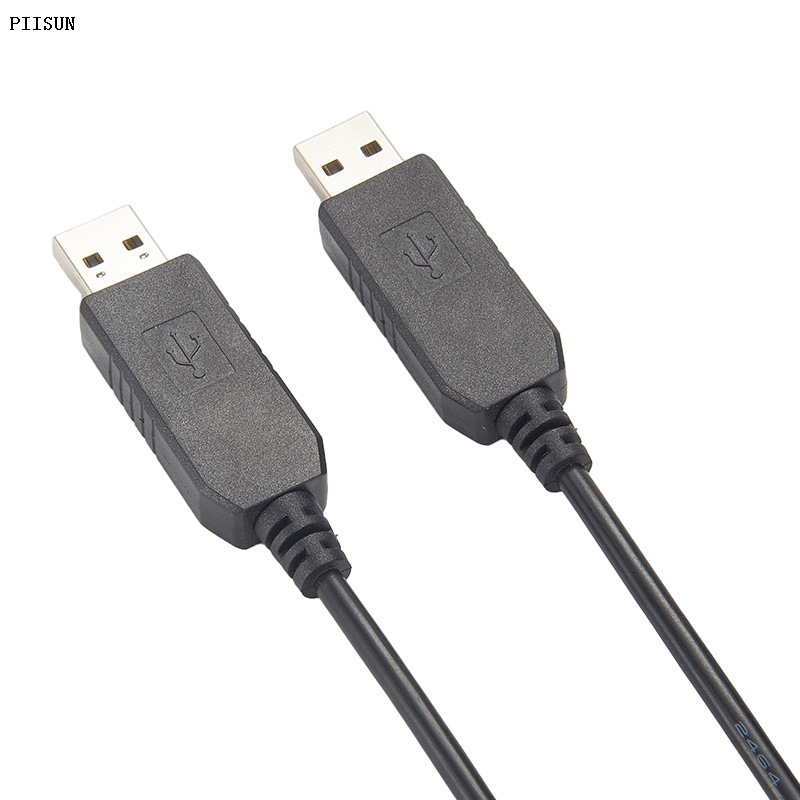

The USB NMC-2.5M is an USB to USB Null Modem Cable for the traditional serial null modem cable. The traditional null modem cable was used to connect two PCs via their RS232 serial ports, but fewer modern PCs continue to implement the RS232 serial port. The RS232 port has almost entirely been replaced by the USB port. The FTDI USB Null Modem Cable (NMC) solves this problem and allows a user to connect two PCs using their USB ports. The user can then perform file transfers between the PCs via the USB interface. The NMC cable contains a small internal electronic circuit board encapsulated into the USB connector at both ends of the cable. The electronics is based on the FTDI FT232R USB to Serial UART IC and handles all the USB signalling and protocols. 2.5m cable which supports data transfer rate up to 3Mbaud at TTL levels.
· USB Powered - no external power supply needed
· Based on back to back FTDI FT232RQ devices
· Entire USB protocol handled by USB connector encapsulated electronics
· USB type-A connector on both ends of cable
· Data transfer rates from 300baud to 3Mbaud at TTL levels
· Lower Operating (20mA) and USB suspend mode current (70µA)
· Support for USB suspend and resume
· USB 2.0 full speed compatible
Industrial, Communications & Networking, Consumer Electronics
• PC to PC networking using USB port.
• File transfer between PCs.
• Password protected file transfer between PCs.
The USB-USB null modem cable can be used to take the place of a traditional serial null modem cable to transfer data between two PCs.

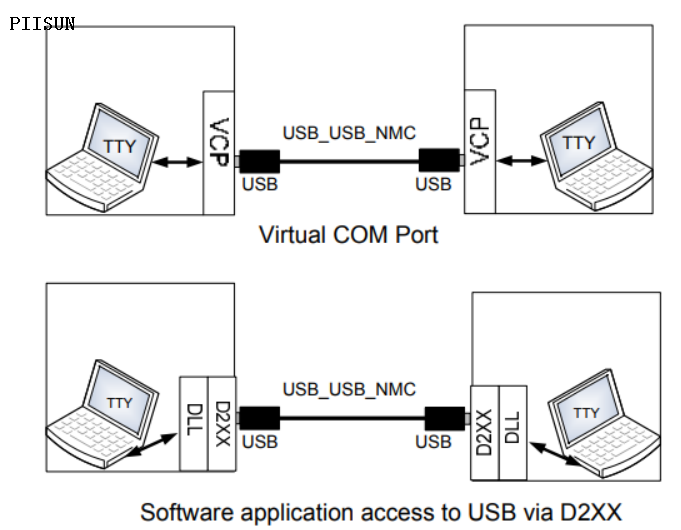

For modern systems that no longer have legacy serial ports, the 2.5m USB-USB null modem cable is a convenient solution which uses FTDI’s Virtual COM Port (VCP) drivers, hence allowing the use of familiar applications such as HyperTerminal to communicate between machines.
The USB-to-USB Null Modem Cable is a modern replacement for the traditional serial null modem cable. The traditional null modem cable was used to connect two PCs via their RS232 serial ports, but fewer modern PCs continue to implement the RS232 serial port. The RS232 port has almost entirely been replaced by the USB port. However, there is still a need to transfer files between PCs that are not networked. The FTDI USB Null Modem Cable (NMC) solves this problem and allows a user to connect two PCs using their USB ports. The user can then perform file transfers between the PCs via the USB interface.
Features
The USB NMC has the following features:
• USB powered – no external power supply needed.
• Based on back-to-back FTDI FT232RQ devices.
• Entire USB protocol handled by USB connector encapsulated electronics.
• USB Type A connector on both ends of cable.
• Data transfer rates from 300 baud to 3 Mbaud at TTL levels.
• Lower Operating (20mA) and USB suspend mode current (70µA)
• Improved EMI Performance – FCC, UKCA and CE compliant.
• Supports FT232RQ FTDIChip-ID™, with each cable end programmed with a unique USB serial number. • Support for USB suspend and resume.
• UHCI / OHCI / EHCI host controller compatible.
• USB 2.0 Full Speed compatible.
• Custom versions also available (subject to MOQ).
• -40°C to +85° C operating temperature range.
