USB-RS232-PCBUSB to RS232 UART Serial Converter PCBUSB to RS232 Serial Adapter PCB w/ Embedded Electronics, USB Connector and LEDsUSB to RS232 serial interface PCB for cable

• Data Rates: 1MBaud

• USB Speed: Full Speed      (12Mbps)

• Interfaces: UART

• USB Connector: Type A

• End Connector: -

• Cable Details: -

• Packages: N/A

• Channels: 1

• I/O Voltage: RS232

• USB Class: FTDI      Drivers

• Max Power Output: +5V / 75mA

• FTDI Internal IC: FT232R

• Operating      Temperature: -40°C to +85°C

The USB-RS232-PCBA converter provides a USB to RS232 serial interface with a simple USB A connector and PCB for an easy integration into a design or as the basis of a converter cable.

Features:

·        Entire USB protocol handled by the electronics encapsulated in USB connector.

·        Data transfer rates from 300 baud to 1 Mbaud.

·        Extended temperature range (-40oC to +85oC).

·        Fully assisted hardware (RTS#/CTS#) or X-On/ X-Off software handshaking.

·        Additional voltage output level is 0v

·        CE, FCC and UKCA approved.

Description

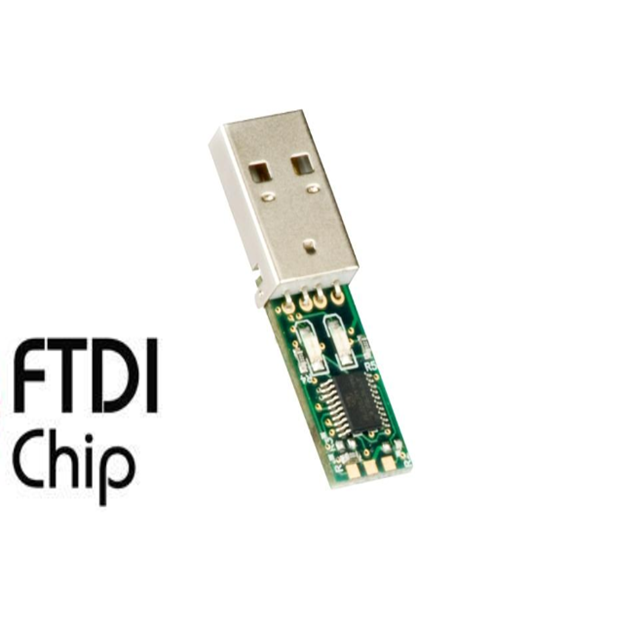

The USB-RS232-PCB is a USB to RS232 level serial UART converter PCB incorporating FTDI’s FT232R USB to Serial UART interface IC device which handles all the USB signalling and protocols. The PCB provides a fast, simple way to connect devices with a RS232 level serial interface to USB. Each USB-RS232-PCB contains a small internal electronic circuit board, utilising the FT232R plus a USB type-A connector. The FT232R datasheet, DS_FT232R, is available at https://ftdichip.com/. The integrated electronics also include an RS232 level shifter plus Tx and Rx LEDs which give a visual indication of UART traffic. All components used, including the FT232R are Pb-free (RoHS compliant).

           Part Number The following Table 1.1 gives details of the available USB-RS232-PCB

Typical Applications

• USB to Serial RS232 Level Converter.

• Upgrading Legacy Peripherals to USB.

• Interface Microcontroller UART or I/O to USB.

• Interface FPGA / PLD to USB.

• USB Instrumentation PC interface.

• USB Industrial Control.

• USB password protected file transfers.

Features

• USB-RS232-PCB provides a USB to RS232 Serial UART interface.

• Entire USB protocol handled by the electronics on the PCB.

• EIA/TIA-232 and V.28/V.24 communication interface with low power requirements.

• UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.

• Fully assisted hardware (RTS#/CTS#) or X-On / X-Off software handshaking.

• Data transfer rates up to 1 Mbaud.

• Internal EEPROM with user writeable area.

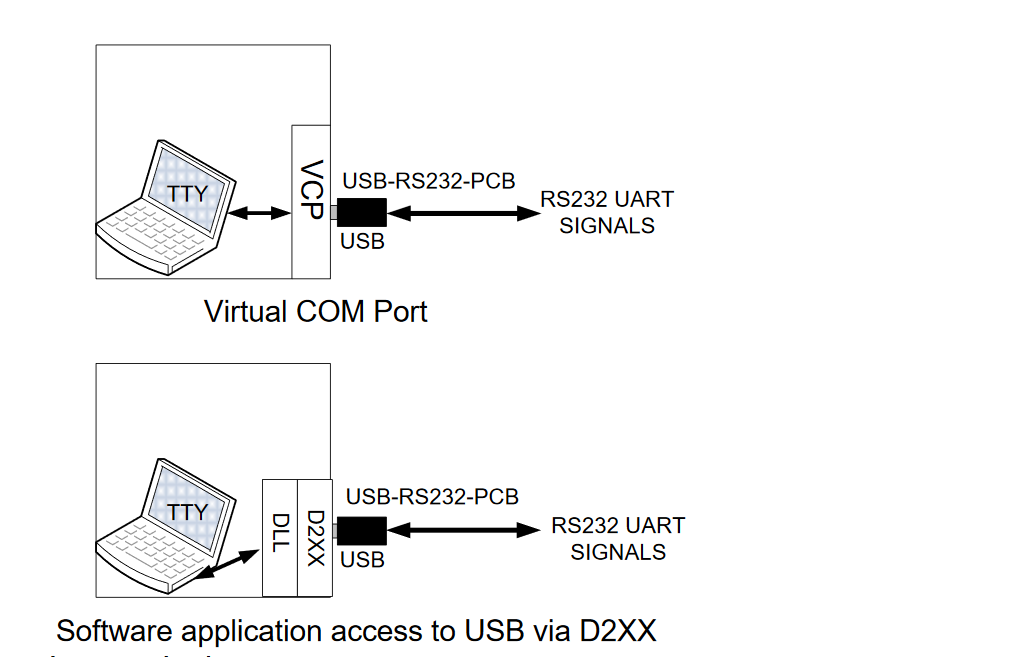

• FTDI’s royalty-free VCP allow for communication as a standard emulated COM port and D2XX ‘direct’ drivers provide DLL application programming interface.

• Support for FT232R FTDIChip-ID™ feature for improved security.

• PCB is USB Powered - no external supply required.

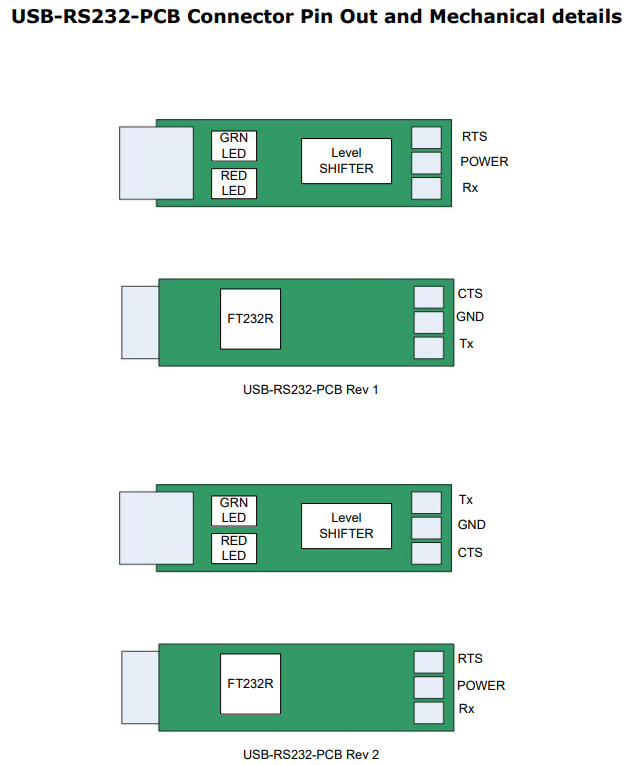

• 6 outputs provide Tx, Rx, RTS#, CTS#, POWER and GND.

• Low USB bandwidth consumption. • UHCI / OHCI / EHCI host controller compatible.

• USB 2.0 Full Speed compatible.

• -40°C to +85°C operating temperature range.

• ESD Protection for RS-232 I/O's ±15kV Human Body Model (HBM) ±15kV EN61000-4-2 Air Gap Discharge ±8kV EN61000-4-2 Contact Discharge
