USB-RS232-WE-1800-BT
PIISUN
| Quantity: | |
|---|---|
FTDI USB-RS232-WE-1800-BT Cable USB to RS232 Serial 1.8M Wire END (5V)
USB-RS232-WE-1800-BT-5.0
The USB connector contains a small circuit board featuring the FTDI FT232RQ serial UART interface IC to handle all the USB signalling and protocols.
These converters are supported with Microsoft WHQL certified VCP drivers for Windows, Apple Mac, and Linux: all of which are available,

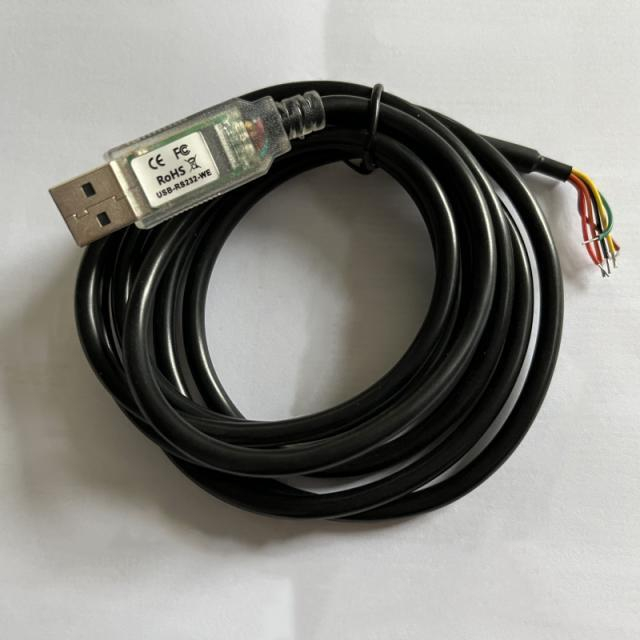

6 feet (1.8 meter) industrial grade USB to RS232 adapter cable with wire ends. Connect legacy DB-9 serial communications devices to a modern computer with USB. Integrated TXD/RXD LEDs in the transparent USB connector to provide a visual indication of data traffic

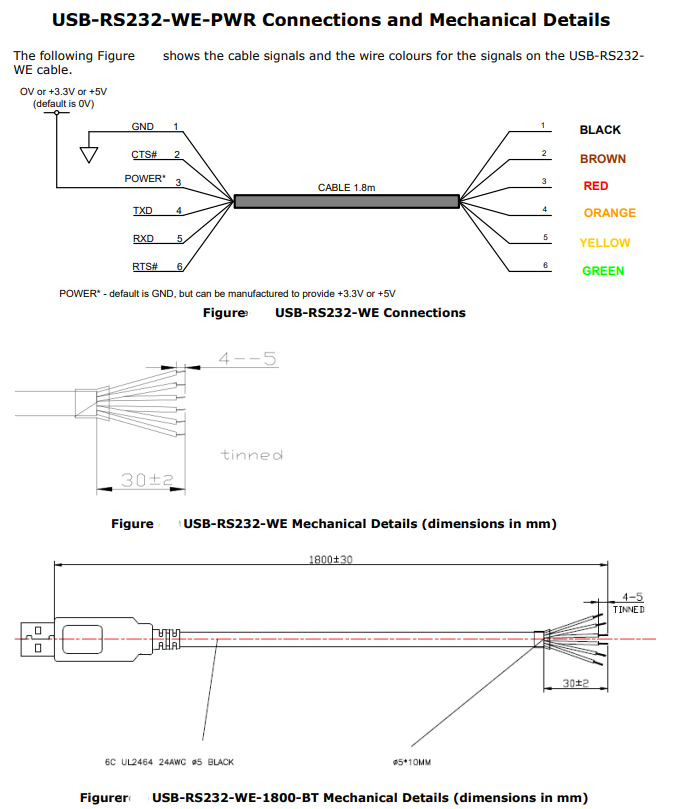

RS-232 level UART data signals: RXD(Yellow), TXD(Orange), GND(Black), RTS(Green), CTS(Brown), +5V(Red). Standard Windows baud rates (300bps to 921.6Kbps). UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space /no parity
Industry standard FTDI chip set & device drivers to ensure maximum compatibility and superior reliability for industrial application. Works with all Windows and Mac OS versions.
Fully assisted hardware (RTS#/CTS#) or X-On/ X-Off software handshaking. USB 2.0 Full Speed compatible. Custom versions available on request
The USB-RS232-WE-1800-BT_5.0 is a 1.8m long USB to RS232 converter cable.
Using the FT232R chip combined with an RS232 level converter, the cable is CE, FCC and UKCA approved product which is one of the simplest USB – RS232 solutions around.

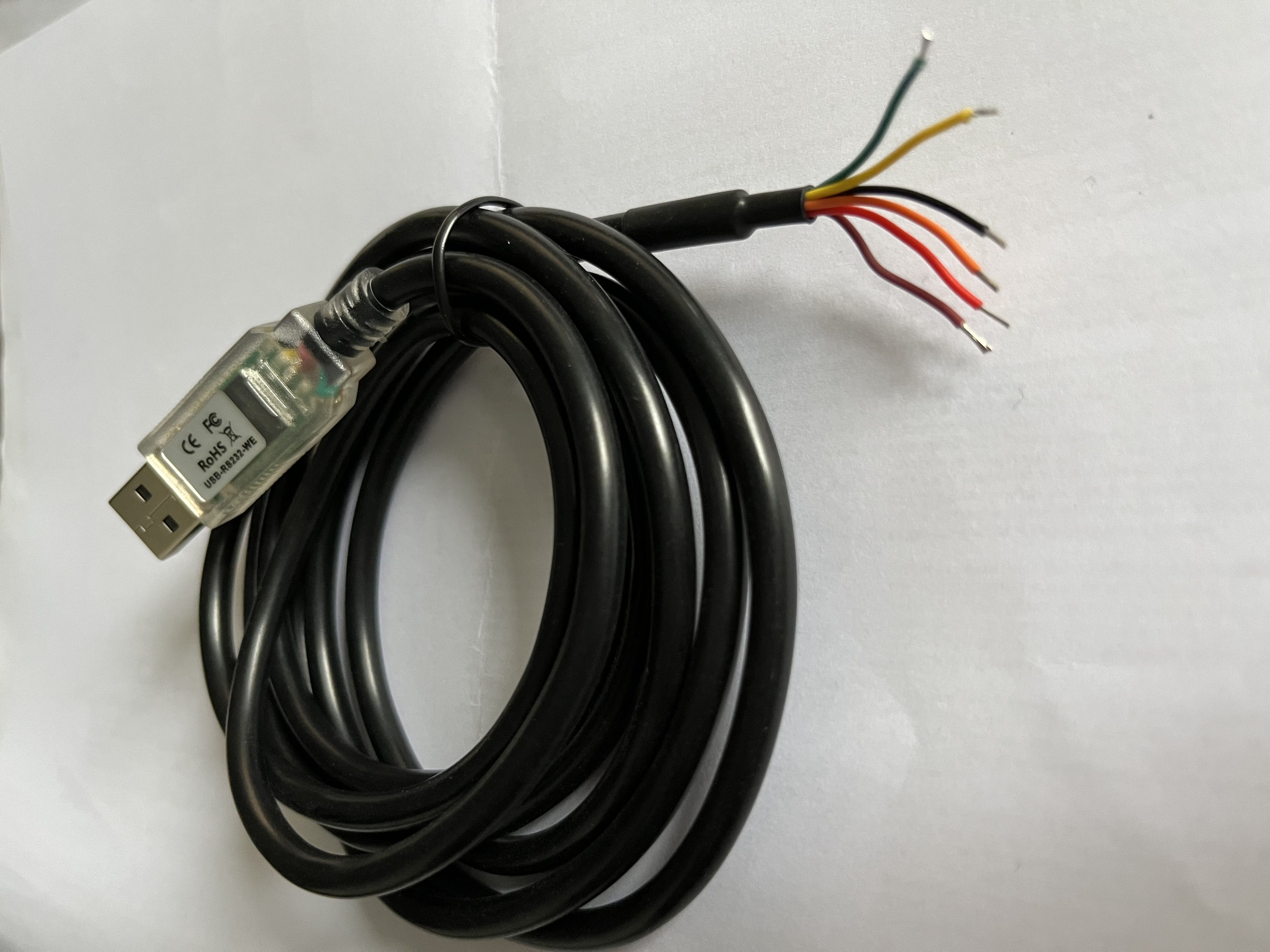

Powered from the USB port, the RS232 signals are exposed on unterminated wires allowing the user to fit an appropriate connector matching their system needs.
The cable can be used with FTDI’s drivers to provide a virtual COM port on a PC which is capable of communication rates with RS232 units from 300 baud up to 1 MBaud.
Data RX and TX LEDs visible through transparent moulding
5v0 supply output
cable colour : black
Cable Part Numbers The following Table 2.1 gives details of the available USB-RS232 cables.supports customised end connector designs. For more information, please contact Sales Team.
Part Number | Description | End Connector* | Cable details |
USB-RS232-WE-1800-BT-0.0 | USB to UART cable with | Wire Ended (no | 1.8m cable,6 core, |
USB-RS232-WE-5000-BT-0.0 | Wire Ended (no | 5m cable,6 core, | |
USB-RS232-WE-1800-BT-3.3 | USB to UART cable with | Wire Ended (no | 1.8m cable,6 core, |
USB-RS232-WE-5000-BT-3.3 | Wire Ended (no | 5m cable,6 core, | |
USB-RS232-WE-1800-BT-5.0 | USB to UART cable with | Wire Ended (no | 1.8m cable,6 core, |
USB-RS232-WE-5000-BT-5.0 | Wire Ended (no | 5m cable,6 core, | |
USB-RS232-CC-LLLL-CU-PWR | USB to UART cable with | CU = Connector | LLLL = Length of |
Note: The tolerance for the 1.8meter length cable is +/-30mm and +/-50mm for 5meter length cable
Typical Applications
• USB to serial RS232 level converter.
• Upgrading legacy peripherals to USB.
• Interface Microcontroller UART or I/O to USB.
• Interface FPGA or PLD to USB.
• USB Instrumentation PC interface.
• USB industrial control.
• USB password protected file transfers.
• USB-RS232 converter cable provides a USB to RS232 serial interface with customised end connectors.
• Entire USB protocol handled by the electronics in the cable USB.
• EIA/TIA-232 and V.28/V.24 communication interface with low power requirements.
• UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.
• Internal EEPROM with user writeable area.
• FTDI’s royalty-free VCP allow for communication as a standard emulated COM port and D2XX ‘direct’ drivers provide DLL application programming interface.
• Visual indication of Tx and Rx traffic via LEDs in the transparent USB connector.
• Fully assisted hardware (RTS#/CTS#) or X-On / X-Off software handshaking.
• Data transfer rates from 300 baud to 1 Mbaud.
• Support for FT232RQ FTDIChip-ID™ feature for improved security.
• Low USB bandwidth consumption.
• UHCI / OHCI / EHCI host controller compatible.
• USB 2.0 Full Speed compatible.
• -40°C to +85°C operating temperature range.
• Cable length is 1.80m or 5.0m.
• ESD Protection for RS-232’/O's ±15kV Human Body Model (HBM) ±15kV EN61000-4-2 Air Gap Discharge ±8kV EN61000-4-2 Contact Discharge
• FCC, UKCA and CE compliant.
Custom versions available on request (subject to MOQ).
