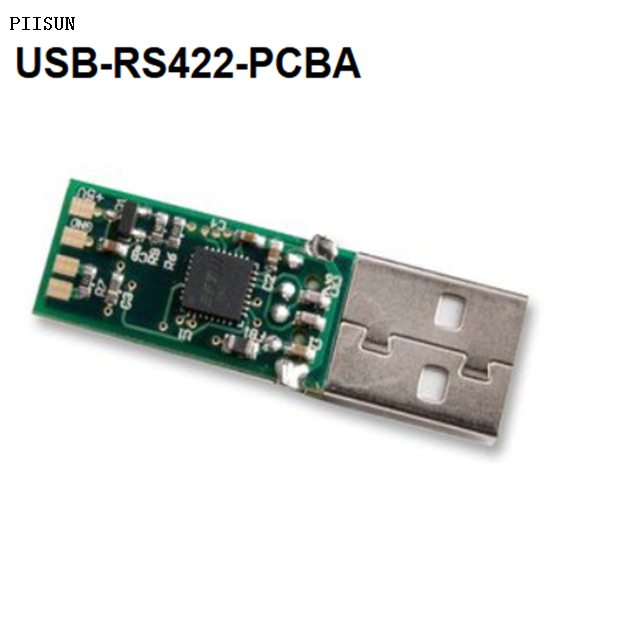

USB-RS422-PCB USB TO RS422 UART SERIAL CONVERTER PCB USB to RS422 Adapter PCB w/ Embedded Electronics, USB Connector and LEDs

 FTDI USB-RS422-PCBA Interface Modules USB to RS422 Embeded Converter PCB Assy

     The USB-RS422-PCB is a USB to RS422 level serial UART converter PCB incorporating FTDI’s FT232RQ USB to Serial UART interface IC device which handles all the USB signalling and protocols. The PCB provides a fast, simple way to connect devices with a RS422 interface to USB

The USB-RS422-PCBA converter provides a USB to RS422 serial interface with a simple USB type A connector and PCB for easy integration into a design or as the basis of a converter cable.

An FT232RQ USB to serial UART interface IC handles all the USB signalling and protocols.

The integrated electronics also include the RS422 transceiver plus Tx and Rx LEDs which give a visual indication of traffic of Tx and Rx.

Product Overview

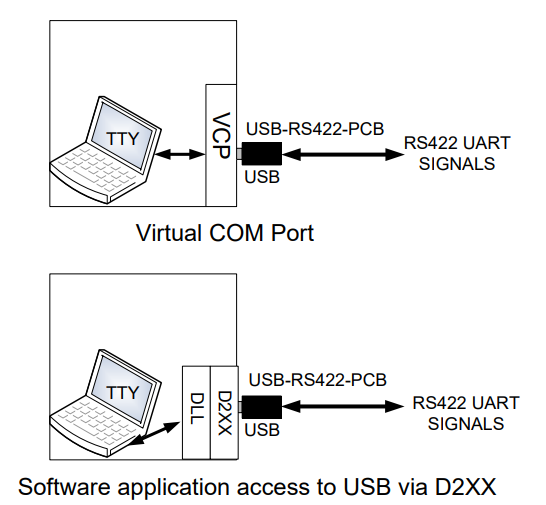

The USB-RS422-PCBA is an USB to RS422 level serial UART Converter PCB incorporates FT232RQ USB to serial UART interface IC device which handles all the USB signalling and protocols The PCB provides a fast, simple way to connect devices with a RS422 interface to USB The integrated electronics also include an RS422 transceiver plus Tx and Rx LEDs which give a visual indication of UART traffic. The PCB is USB powered and USB 2.0 full speed compatible. This feature can be used to create a security or password protected file transfer access using the PCB. The USB-RS422-PCBA requires USB drivers which are used to make the FT232R on the PCB appear as a virtual COM port (VCP). This then allows the user to communicate with the USB interface via a standard PC serial emulation port.

· Entire USB protocol handled by the electronics on the PCB

· EIA/TIA-422 interface with low power requirements

· Data transfer rates from 300baud up to 3Mbaud

· Internal EEPROM with user writeable area

· PCB is USB powered, no external supply required

· Low USB bandwidth consumption

· UHCI/OHCI/EHCI host controller compatible

· USB 2.0 full speed compatible

· Support for FT232R FTDIChip-ID™ for improved security

             Part Number The following Table 1.1 gives details of the available USB-RS422-PCB.

Typical Applications

• USB to Serial RS422 Level Converter.

• Upgrading Legacy Peripherals to USB.

• Interface Microcontroller UART or I/O to USB.

• Interface FPGA / PLD to USB.

• USB Instrumentation PC interface.

• USB Industrial Control.

• USB password protected file transfers.

Features

• USB-RS422-PCB provides a USB to RS422 Serial UART interface.

• Entire USB protocol handled by the electronics on the PCB.

• EIA/TIA-422 interface with low power requirements.

• UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.

• Data transfer rates from 300 baud up to 3 Mbaud.

• Internal EEPROM with user writeable area.

• FTDI’s royalty-free VCP allow for communication as a standard emulated COM port and D2XX ‘direct’ drivers provide DLL application programming interface.

• Support for FT232RQ FTDIChip-ID™ feature for improved security.

• PCB is USB Powered - no external supply required.

• Low USB bandwidth consumption.

• UHCI / OHCI / EHCI host controller compatible.

• USB 2.0 Full Speed compatible.

• -40°C to +85°C operating temperature range.

• FCC, CE, UKCA and RoHS compliant.

• ESD Protection for RS-422 I/O's ±15kV Human Body Model (HBM) ±15kV EN61000-4-2 Air Gap Discharge ±8kV EN61000-4-2 Contact Discharge
