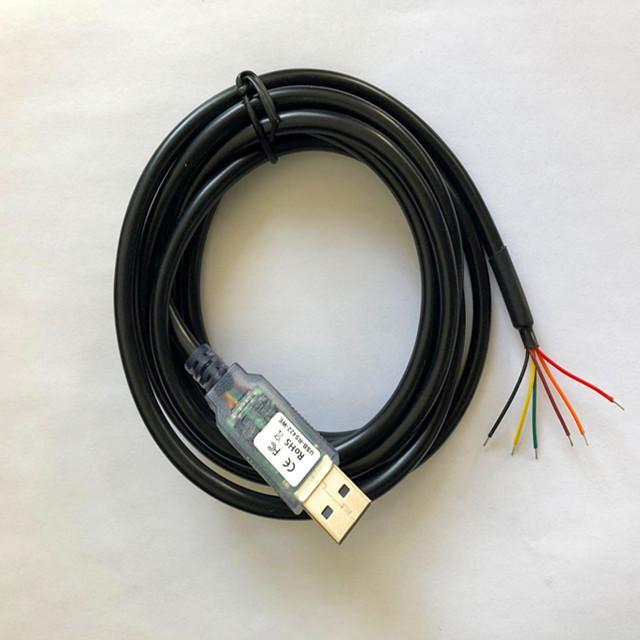

USB-RS422-WE USB to RS422 Serial Converter Cable

The USB-RS422-WE from FTDI is an USB to UART cable with RS422 level UART signals. It incorporates FTDI's FT232R USB to serial UART interface IC which handles all the USB signalling and protocols. The cable provides fast, simple way to connect devices with RS422 interface to USB

  • USB-RS422-WE-1800-BT

  • PIISUN

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


USB-RS422-WE USB to RS422 Serial Converter CableUSB TO RS422 WIRE END, BLACK, Transparent USB CONNECTORUSB to RS422 serial interface cable/ USB to RS422, Serial Converter, Wire-End

Cable Type: Extension Cable
Compatible Devices: Personal Computer
Special Feature: High speed transmission signal

About this item

  • Ftdi USB to RS422 serial interface cable USB-RS422-WE-1800-BT

  • Fast charging cable and data transfer line

  • Cable length(can be customized), pure copper wire core, PVC jacket, OD 3.5mm, Die-casting, support 3A current

  • From the OEM Original Factory, the same quality with a much better price.

422USB-RS422-WERS422 CABLE

Product Overview

FTDI Chip USB to RS-422 Converter Cable Wire Ended with LED.


USB to UART convertor cables have RS422 level UART signals plus offer you a quick and simple path connecting to an RS422 interface to USB. The USB connection has a built-in, small circuit board, featuring the FT232RQ UART interface IC handling all the USB signalling and protocols. Also included within are 2 LED’s providing a visual of the traffic flow received and transmitted. One end of the cable is supplied bare showing the tinned wire connections ready to be customised as required. Cables are available in various lengths, USB compliant, USB powered and have UART data transfer rate of 3 Mbaud.


Features and Benefits.


• USB to UART Converter cable.
• USB-RS-422 serial interface.
• USB Protocol managed by electronics within the cable.
• EIA/TIA-422 Communication interface.
• Low power requirement.
• UART Interface support for 7 or 8 bits (1 or 2 stop bits).
• Built-in LED to monitor traffic.
• USB Connecter is transparent.
• Data transfer rate from 300 baud to 3 Mbaud.
• Low USB bandwidth consumption.
• UHIC, OHCI, EHCI host controller compatible.
• USB 2.0 Full speed compatible.
• ESD Protection.
• Various cable lengths available.
• Colour is black.


Typical Applications.


• USB to serial RS422 level converter.
• Upgrading legacy peripherals to USB.
• Interface microcontroller UART or I/O to USB.
• Interface FPGA or PLD to USB.
• USB instrumentation OC interface.
• USB Industrial control.
• USB Password protected file transfers.

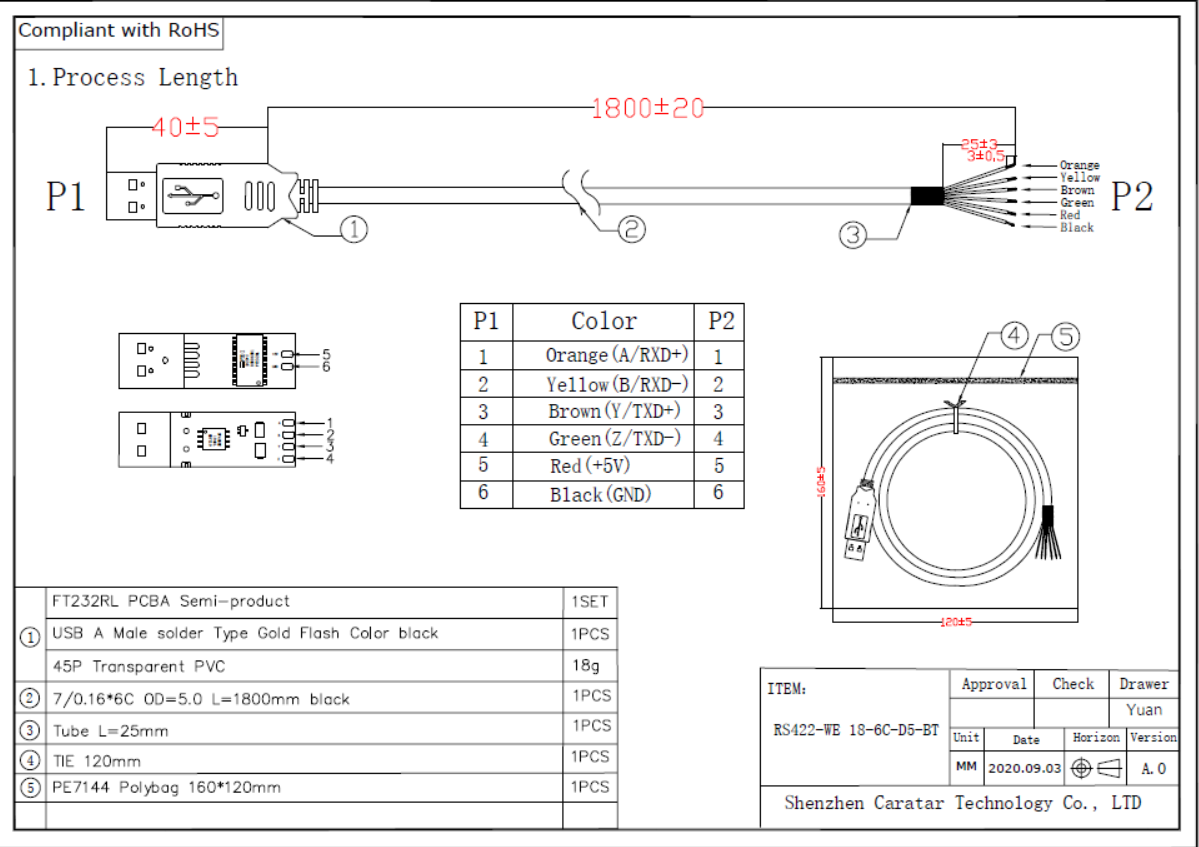

The other end of the cable is bare, tinned wire ended connections by default, but can be customised using different connectors to support various applications.




Cable Part Numbers Table 2.1 gives details of the available USB-RS422 cables.

Part Number

Description

End Connector*

Cable details

USB-RS422-WE-1800-BT

USB to UART cable with RS422
  level UART signals. Black cable,
  Transparent USB connector

Wire Ended (no connector)

1.8m cable,9 core,
    28 AWG,
  diam=5mm

USB-RS422-WE-5000-BT

5m cable,9 core,
    28 AWG,
  diam=5mm

USB-RS422-CC-LLLL-CU

USB to UART cable with RS422 level UART   signals. C = cable colour (B black or T transparent), U = USB connector   colour (T transparent or B black)

CC = Connector description.

LLLL = Length of
  cable.




Supported different customization , full detail contact our sales directly please

USB to RS422 Serial Converter Cable rs 422 to usb adapter usb to rs422 adapter rs 422 to usb converter usb to 422 adapter Usb To Rs422 USB to RS422 RS485 Serial Port Converter Adapter USB-RS422-WE-1800-BT - FTDI RS422 RS485 USB Serial Cable Adapter USB RS422 Cable Series
