USB to RS485 Adapter PCB w/ Embedded Electronics, USB Connector and LEDs(USB To RS485 UART Serial Converter PCB, Provides Fast Simple Way to Connect RS485 Interface to USB)

USB to RS485 serial interface PCB for cable

Product Overview

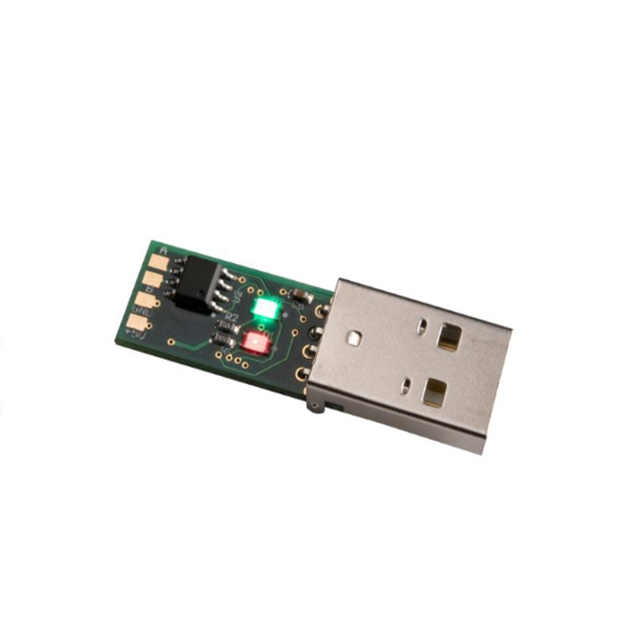

The USB-RS485-PCBA from FTDI is a USB to RS485 level serial UART converter PCB. It incorporate FT232RQ USB to serial UART interface IC device which handles all the USB signalling and protocols. The PCB provides a fast, simple way to connect devices with a RS485 interface to USB. USB-RS485-PCBA contains a small internal electronic circuit board, utilizing the FT232R plus a USB type A connector. The integrated electronics also include an RS485 transceiver plus Tx and Rx LEDs which give a visual indication of UART traffic. Each PCB supports a data transfer rate up to 3Mbaud and supports the FTDIChip-ID with a unique USB serial number programmed into the FT232R. This feature can be used to create a security or password protected file transfer access using the PCB. The USB-RS485-PCBA requires USB drivers which are used to make the FT232R on the PCB appear as a virtual COM port (VCP) and allows user to communicate with the USB interface via a standard PC serial emulation port.

·   Entire USB protocol handled by the electronics on the PCB

·   EIA/TIA-485 interface with low power requirements

·   UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd/even/mark/space/no parity

·   Internal EEPROM with user writeable area

·   PCB is USB powered, no external supply required

·   X-on/X-off software handshaking

·   Low USB bandwidth consumption

·   UHCI/OHCI/EHCI host controller compatible

·   USB 2.0 full speed compatible

·   ESD protection for RS485 I/O's

Applications

Communications & Networking, Sensing & Instrumentation, Industrial, Security, Automotive

USB to Serial RS485 Level Converter.

• Upgrading Legacy Peripherals to USB.

• Interface Microcontroller UART or I/O to USB.

• Interface FPGA / PLD to USB.

• USB Instrumentation PC interface.

• USB Industrial Control.

• USB password protected file transfers.

Features

• USB-RS485-PCB provides a USB to RS485 Serial UART interface.

• Entire USB protocol handled by the electronics on the PCB.

• EIA/TIA-485 interface with low power requirements.

• UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.

• Data transfer rates up from 300 baud to 3 Mbaud.

• Internal EEPROM with user writeable area.

• FTDI’s royalty-free VCP allow for communication as a standard emulated COM port and D2XX ‘direct’ drivers provide DLL application programming interface.

• Support for FT232RQ FTDIChip-ID™ feature for improved security.

• PCB is USB Powered – no external supply required.

• X-On / X-Off software handshaking

• Low USB bandwidth consumption.

• UHCI / OHCI / EHCI host controller compatible.

• USB 2.0 Full Speed compatible.

• -40°C to +85°C operating temperature range.

• FCC, UKCA, CE and RoHS compliant.

• ESD Protection for RS-485 I/O’s ±15kV Human Body Model (HBM) ±15kV EN61000-4-2 Air Gap Discharge ±8kV EN61000-4-2 Contact Discharge
