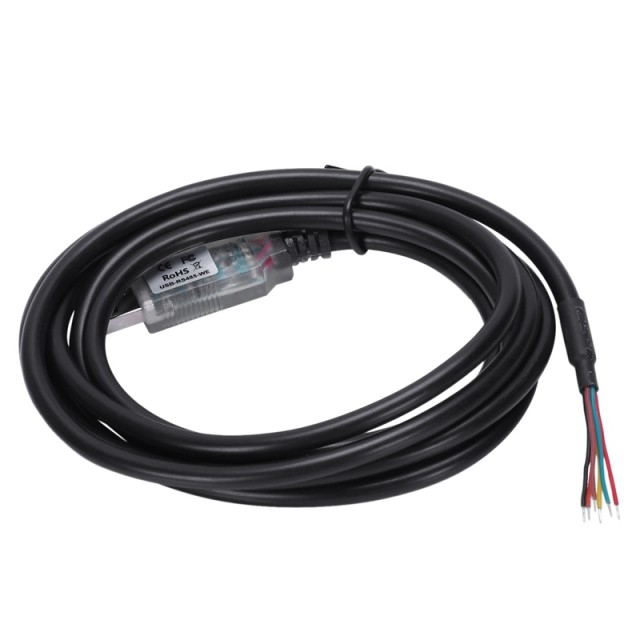

USB-RS485-WE-1800-BT
PIISUN
| Quantity: | |
|---|---|
The USB RS485 WE is a USB to RS485 serial converter cable. It allows you to connect devices with RS485 interfaces to your computer via a USB port.
This converter cable is designed to provide reliable and high-speed communication between your computer and RS485 devices. It supports data rates up to 1 Mbps and has built-in protection against electrostatic discharge.
The USB RS485 WE cable is easy to use and requires no external power supply. It features a 1.8-meter long cable with a USB Type-A connector on one end and a 9-pin D-Sub connector on the other end for connecting to RS485 devices.
This converter cable is compatible with various operating systems, including Windows, Mac, and Linux. It comes with drivers and software for easy installation and configuration.
Overall, the USB RS485 WE USB to RS485 serial converter cable is a reliable and convenient solution for connecting RS485 devices to your computer. It provides a seamless and efficient way to communicate with RS485 devices and is suitable for various applications, such as industrial automation, data acquisition, and control systems.
Cable Part Numbers The following Table 2.1 gives details of the available USB-RS485 cables
Part Number | Description | End Connector* | Cable details |
USB-RS485-WE-1800-BT | USB to UART cable with RS485 level UART signals. Black cable, Transparent USB connector | Wire Ended (no connector) | 1.8m cable,6 core, |
USB-RS485-WE-5000-BT | 5m cable,6 core, | ||
USB-RS485-CC-LLL-CU-X | USB to UART cable with RS485 | CC = Connector | LLLL = Length of |
FTDI supports customised end connector designs. For more information, please contact Sales Team
Note: The tolerance for the 1.8 meter length cable is +/-30mm and +/-50mm for 5 meter length cable.
• USB to serial RS485 level converter.
• Upgrading legacy peripherals to USB.
• Interface Microcontroller UART or I/O to USB.
• Interface FPGA or PLD to USB.
• USB Instrumentation PC interface.
• USB industrial control.
• USB password protected file transfers.
• USB-RS485 converter cable provides a USB to RS485 serial interface with customised end connectors.
• Entire USB protocol handled by the electronics in the cable.
• EIA/TIA-485 communication interface with low power requirements.
• UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.
• Internal EEPROM with user writeable area.
• FTDI’s royalty-free VCP allow for communication as a standard emulated COM port and D2XX ‘direct’ drivers provide DLL application programming interface.
• Visual indication of Tx and Rx traffic via LEDs in the transparent USB connector.
• X-On / X-Off software handshaking.
• Data transfer rates from 300 baud to 3 Mbaud.
• Support for FT232RQ FTDIChip-ID™ feature for improved security.
• Low USB bandwidth consumption.
• UHCI / OHCI / EHCI host controller compatible.
• USB 2.0 Full Speed compatible.
• -40°C to +85°C operating temperature range.
• Cable length is 1.80m or 5.0m.
• ESD Protection for RS-485 I/O's ±15kV Human Body Model (HBM) ±15kV EN61000-4-2 Air Gap Discharge ±8kV EN61000-4-2 Contact Discharge
• FCC, UKCA, CE and RoHS compliant.
• Custom versions available on request (subject to MOQ).
• RoHS Compliant.
Supported different customization , fully detail contact sales directly with thanks
