In today’s fast-paced tech world, it’s easy to assume that older hardware is obsolete. But in reality, many legacy devices are still actively used in industries, research labs, and even personal projects. These devices are often reliable, durable, and essential for specific tasks—making them hard to replace.
However, there’s a problem. Most modern computers, especially laptops, no longer come with traditional serial (COM) ports. This makes it challenging to connect to devices that rely on RS-232 serial communication.
That’s where the USB Serial Adapter Cable comes in. It acts as a bridge between modern USB-only computers and older equipment that still uses serial interfaces. By using a USB Serial Adapter Cable, users can easily connect, configure, and communicate with legacy hardware—without needing outdated PCs.
This simple solution helps extend the life of valuable equipment, saves money, and ensures smooth workflows in both professional and hobbyist environments.

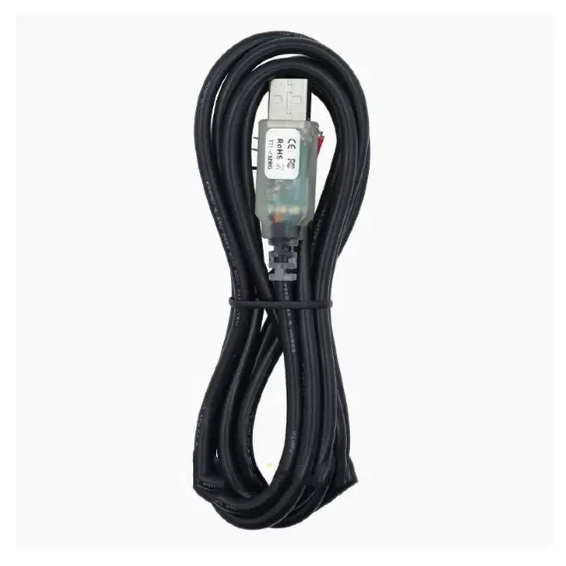

A USB Serial Adapter Cable is a device that allows modern computers with USB ports to communicate with older hardware that uses serial (RS-232) interfaces. It works by converting USB signals into serial signals, making it possible to connect devices that would otherwise be incompatible.
Connecting industrial control systems
Interfacing with old printers or barcode scanners
Debugging embedded systems like Arduino or Raspberry Pi
Accessing legacy networking equipment like routers or switches
A USB connector to plug into your computer
A built-in chip to convert signals (usually FTDI, CH340, or Prolific)
A serial connector, typically DB9, DB25, or TTL pins
With this setup, users can easily restore communication with devices that rely on serial protocols, without needing older PCs or specialized hardware.
Setting up your USB Serial Adapter Cable is usually quick and simple, even if you're not familiar with serial communication. By following these easy steps, you can easily connect modern computers to legacy devices that use serial interfaces. Here’s how to get started:
Before using the USB Serial Adapter Cable, your computer needs to recognize the device and its associated chipset. Many adapters come with drivers pre-installed or can automatically install them when plugged into your computer. However, this depends on the chipset the adapter uses.
FTDI-based adapters are generally plug-and-play on most operating systems (Windows, macOS, and Linux). Simply connect the cable, and your system will automatically recognize it.
Prolific or CH340-based adapters, however, often require manual driver installation. These drivers can be downloaded from the manufacturer's website. Be sure to download the latest version to avoid compatibility issues, especially after system updates.
Once the drivers are installed, your system will assign a virtual COM port to the adapter, allowing you to interact with legacy devices using serial communication.
Now that the driver is installed, you’re ready to connect the cable.
Plug the USB end of the USB Serial Adapter Cable into an available USB port on your computer. Modern computers typically only have USB-A or USB-C ports, so make sure your adapter matches the type of USB port available.
Next, connect the serial end (usually DB9 or DB25) to your legacy device. This could be an industrial machine, a network router, an old printer, or even an embedded system like an Arduino board. Ensure the connection is secure and that the device is powered on.
After connecting the cable, it's important to verify that your computer recognizes the USB Serial Adapter Cable and assigns a proper COM port.
For Windows users:
Open the Device Manager by pressing the Windows + X keys and selecting Device Manager from the menu. Look for “Ports (COM & LPT)” in the list. You should see an entry for your adapter, such as “USB Serial Port (COM3)” or a similar name, depending on your system.
For macOS/Linux users:
Open a Terminal window. To list the serial devices, run the following command:
ls /dev/tty.* (macOS) or dmesg | grep tty (Linux). This will show the connected devices, including your newly added USB serial port.
Now that your system recognizes the serial port, it's time to open a serial communication tool. Common tools for serial communication include:
PuTTY (Windows)
TeraTerm (Windows)
CoolTerm (Windows/macOS/Linux)
Minicom (Linux/macOS)
Open the serial tool of your choice and configure the settings as follows:
Select the correct COM port that your USB Serial Adapter Cable is assigned to.
Set the correct communication parameters, such as baud rate, data bits, parity, and stop bits. These settings need to match the settings of the device you're connecting to (this information can often be found in the device's manual).
Once you’ve configured the serial tool with the correct parameters, click “Open” or “Connect”, and you’ll be able to start sending or receiving data over the serial connection.
Using a USB Serial Adapter Cable is a straightforward way to bridge the communication gap between modern computers and legacy devices. However, to ensure a smooth and reliable connection, here are some important tips to consider:
When working with USB Serial Adapter Cables, it's crucial to understand the different signal types used by legacy devices. For example, RS-232 and TTL (Transistor-Transistor Logic) are common standards for serial communication, but they operate at different voltage levels. Connecting devices with mismatched signal types can damage your equipment or lead to unreliable communication.
RS-232 typically uses voltage levels between ±12V.
TTL signals operate at 0V and 5V or 3.3V.
Always check your device specifications to ensure the correct signal type is used for a safe and successful connection.
One of the most common issues when setting up a serial connection is incorrect settings. Baud rate, data bits, parity, and stop bits must all match between the USB adapter and the legacy device to ensure proper communication.
Baud Rate: This controls the speed of data transfer. Common rates are 9600, 19200, and 115200. Make sure both devices are set to the same rate.
Data Bits: The number of data bits (usually 7 or 8). Ensure consistency.
Parity: This setting checks for errors in data transmission. Options include None, Even, and Odd.
Stop Bits: These signal the end of a data byte. Most devices use 1 or 2 stop bits.
Ensuring that both the adapter and legacy device have matching settings will prevent data loss or garbled communication.
While it's tempting to use a longer USB Serial Adapter Cable for flexibility, keep in mind that long cables can degrade signal quality. Longer cables may introduce noise or signal loss, leading to unreliable or intermittent communication.
Shorter cables generally offer better signal integrity.
If you must use longer cables, consider using high-quality shielded cables to minimize interference and signal degradation.
If you're experiencing issues with long cables, try shortening the connection and see if the performance improves.
In today’s fast-moving tech world, many older devices still play a vital role in industrial, lab, and personal projects. A USB Serial Adapter Cable is the simplest and most cost-effective way to keep that legacy equipment running—no need for expensive replacements or complex upgrades.
This one small tool makes it easy to connect modern computers to serial-based devices. It’s low-cost, user-friendly, and compatible with major operating systems like Windows, macOS, and Linux.
