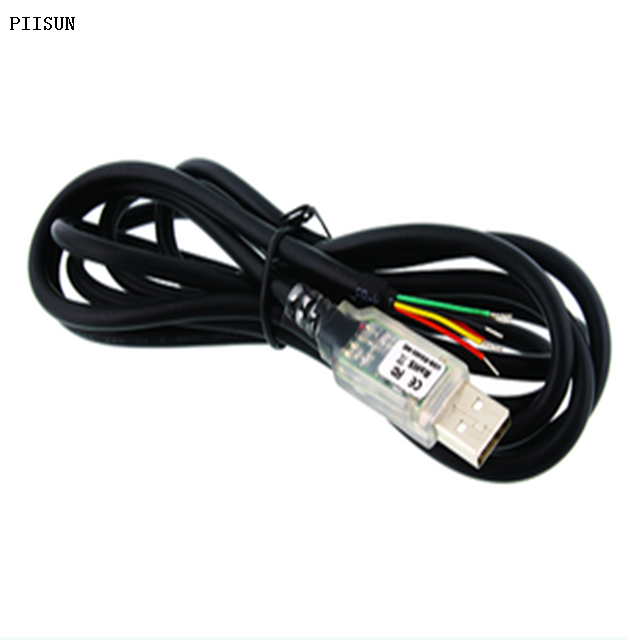

High-quality USB to RS485 Serial Converter Cable by PIISUN.
Incorporates FTDI's FT232RQ USB to serial UART interface IC device for reliable performance.
Enables fast and easy connection between devices with RS485 interface and USB.
Features a small internal electronic circuit board with integrated RS485 transceiver.
Tx and Rx LEDs provide visual indication of cable traffic.
Customizable connectors available to support different applications.
Professional-grade product designed for seamless data transmission.
Ideal for industrial automation, control systems, and other RS485-based applications.
Ensures stable and reliable communication between USB and RS485 devices.
Compatible with various operating systems, including Windows, Mac, and Linux.
The USB-RS485 cable is a USB to RS485 levels serial UART converter cable incorporating FTDI’s FT232RQ USB to serial UART interface IC device which handles all the USB signalling and protocols. The cable provides a fast, simple way to connect devices with a RS485 interface to USB. Each USB-RS485 cable contains a small internal electronic circuit board, utilising the FT232RQ, which is encapsulated into the USB connector end of the cable. The FT232RQ datasheet, DS_FT232R, is available at https://ftdichip.com/. The integrated electronics also include the RS485 transceiver plus Tx and Rx LEDs which give a visual indication of traffic on the cable (if transparent USB connector specified). The other end of the cable is bare, tinned wire ended connections by default, but can be customised using different connectors to support various applications. The USB-RS485 cable is designed for use at the end of an RS485 network up to approximately 10m. For longer networks or placement of the USB-RS485 cable in the middle of an RS485 network it is recommended that the attached wire is cut to 20cm or less to ensure signal integrity. Cables are FCC, CE, UKCA and RoHS compliant
Cable Part Numbers The following Table 2.1 gives details of the available USB-RS485 cables
Part Number | Description | End Connector* | Cable details |
USB-RS485-WE-1800-BT | USB to UART cable with RS485 level UART signals. Black cable, Transparent USB connector | Wire Ended (no connector) | 1.8m cable,6 core, 26 AWG, diam=5mm |
USB-RS485-WE-5000-BT | 5m cable,6 core, 26 AWG, diam=5mm | ||
USB-RS485-CC-LLL-CU-X | USB to UART cable with RS485 level UART signals. C = cable colour (B black or T transparent), U = USB connector colour (T transparent or B black) X = voltage (P is 5V, G is 0V) | CC = Connector description. | LLLL = Length of cable. |
FTDI supports customised end connector designs. For more information, please contact Sales Team
Note: The tolerance for the 1.8 meter length cable is +/-30mm and +/-50mm for 5 meter length cable.
Typical Applications
• USB to serial RS485 level converter.
• Upgrading legacy peripherals to USB.
• Interface Microcontroller UART or I/O to USB.
• Interface FPGA or PLD to USB.
• USB Instrumentation PC interface.
• USB industrial control.
• USB password protected file transfers.
• USB-RS485 converter cable provides a USB to RS485 serial interface with customised end connectors.
• Entire USB protocol handled by the electronics in the cable.
• EIA/TIA-485 communication interface with low power requirements.
• UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.
• Internal EEPROM with user writeable area.
• FTDI’s royalty-free VCP allow for communication as a standard emulated COM port and D2XX ‘direct’ drivers provide DLL application programming interface.
• Visual indication of Tx and Rx traffic via LEDs in the transparent USB connector.
• X-On / X-Off software handshaking.
• Data transfer rates from 300 baud to 3 Mbaud.
• Support for FT232RQ FTDIChip-ID™ feature for improved security.
• Low USB bandwidth consumption.
• UHCI / OHCI / EHCI host controller compatible.
• USB 2.0 Full Speed compatible.
• -40°C to +85°C operating temperature range.
• Cable length is 1.80m or 5.0m.
• ESD Protection for RS-485 I/O's ±15kV Human Body Model (HBM) ±15kV EN61000-4-2 Air Gap Discharge ±8kV EN61000-4-2 Contact Discharge
• FCC, UKCA, CE and RoHS compliant.
• Custom versions available on request (subject to MOQ).
• RoHS Compliant.
