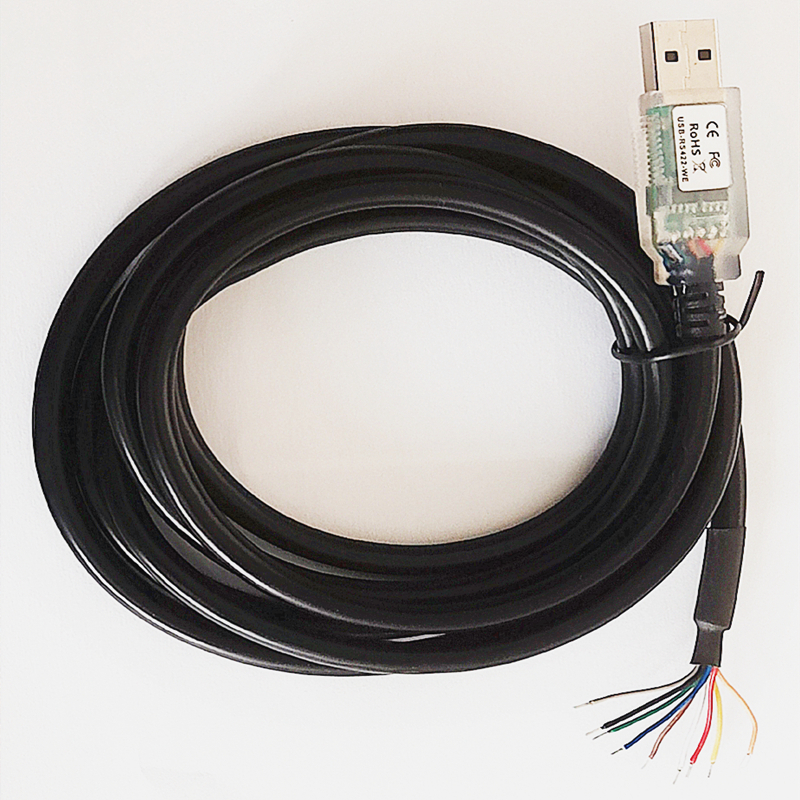

The USB-RS422-WE-1800-BT from FTDI is an USB to UART cable with RS422 level UART signals. It incorporates FTDI's FT232RQ USB to serial UART interface IC which handles all the USB signalling and protocols. The cable provides fast, simple way to connect devices with RS422 interface to USB. It contains small internal electronic circuit board utilising FT232R which is encapsulated into USB connector at one end of the cable. The other end of cable is bare, tinned wire ended connections. The integrated electronics also include the RS422 transceiver, Tx and Rx LEDs which give a visual indication of traffic on cable. The USB side of cable is USB powered and USB 2.0 full speed compatible.

• Black cable and transparent USB connector

• 24AWG, 9 core cable

• Cable length of 1.8m (6feet)

• Diameter of 5mm

• EIA/TIA-422 communication interface with low power requirements

• Internal EEPROM with user writeable area

• FCC and CE compliant

• Maximum UART baud rate of 3Mbaud

• Support for FT232R FTDIChip-ID feature for improved security

• Operating temperature range from -40°C to 85°C

USB RS422 Cable Series / USB-RS422-WE-1800-BT  product list :

Part   Number	Description	End   Connector*	Cable details
USB-RS422-WE-1800-BT	USB to   UART cable with RS422     level UART signals. Black cable,     Transparent USB connector	Wire   Ended (no connector)	1.8m   cable,9 core,       28 AWG,     diam=5mm
USB-RS422-WE-5000-BT			5m   cable,9 core,       28 AWG,     diam=5mm
USB-RS422-CC-LLLL-CU	USB   to UART cable with RS422 level UART signals. C = cable colour (B black or T   transparent), U = USB connector colour (T transparent or B black)	CC   = Connector description.	LLLL   = Length of     cable.

Applications

Communications & Networking, Industrial

Supported Different customization if you need , let's talk more
