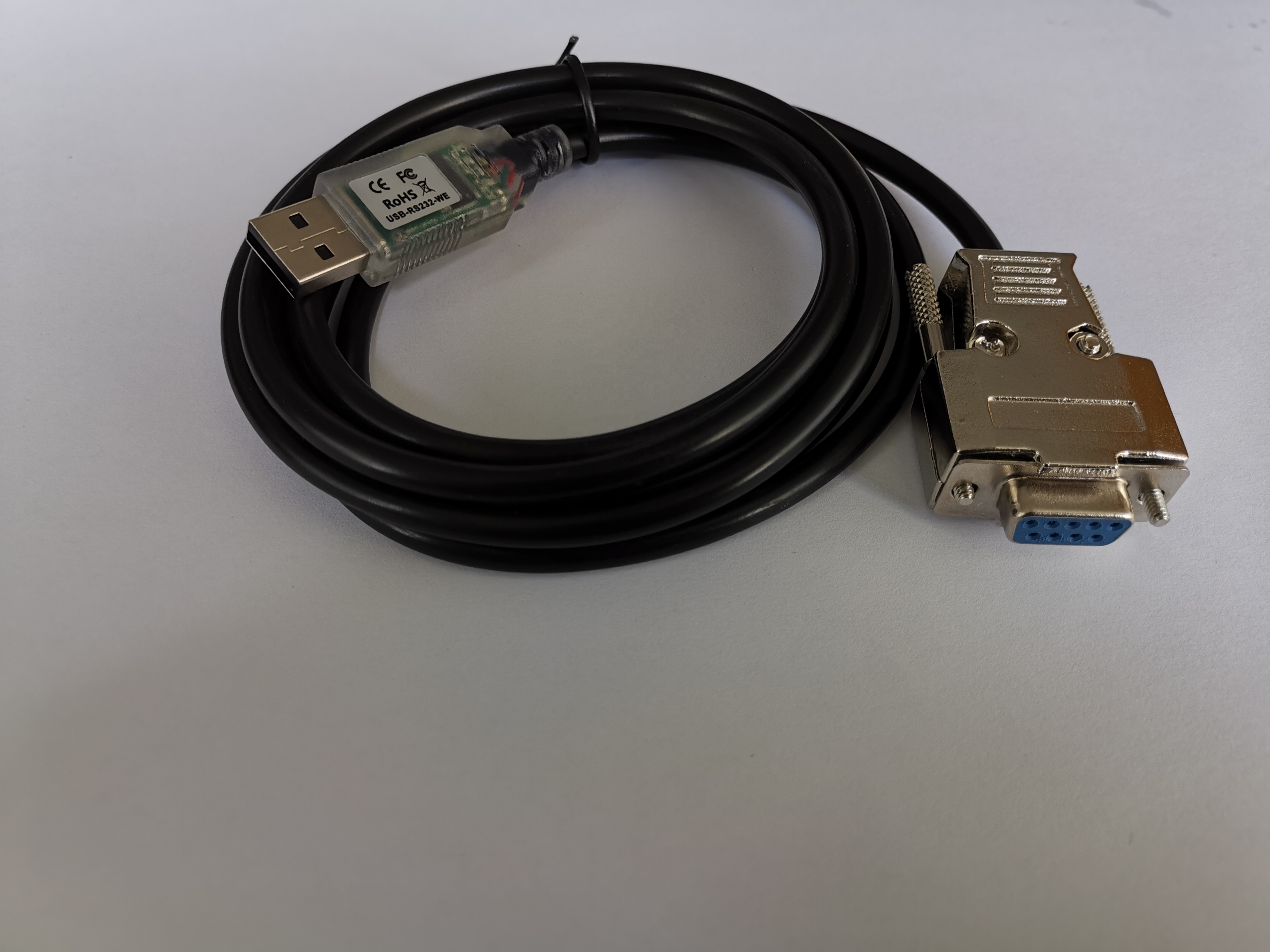

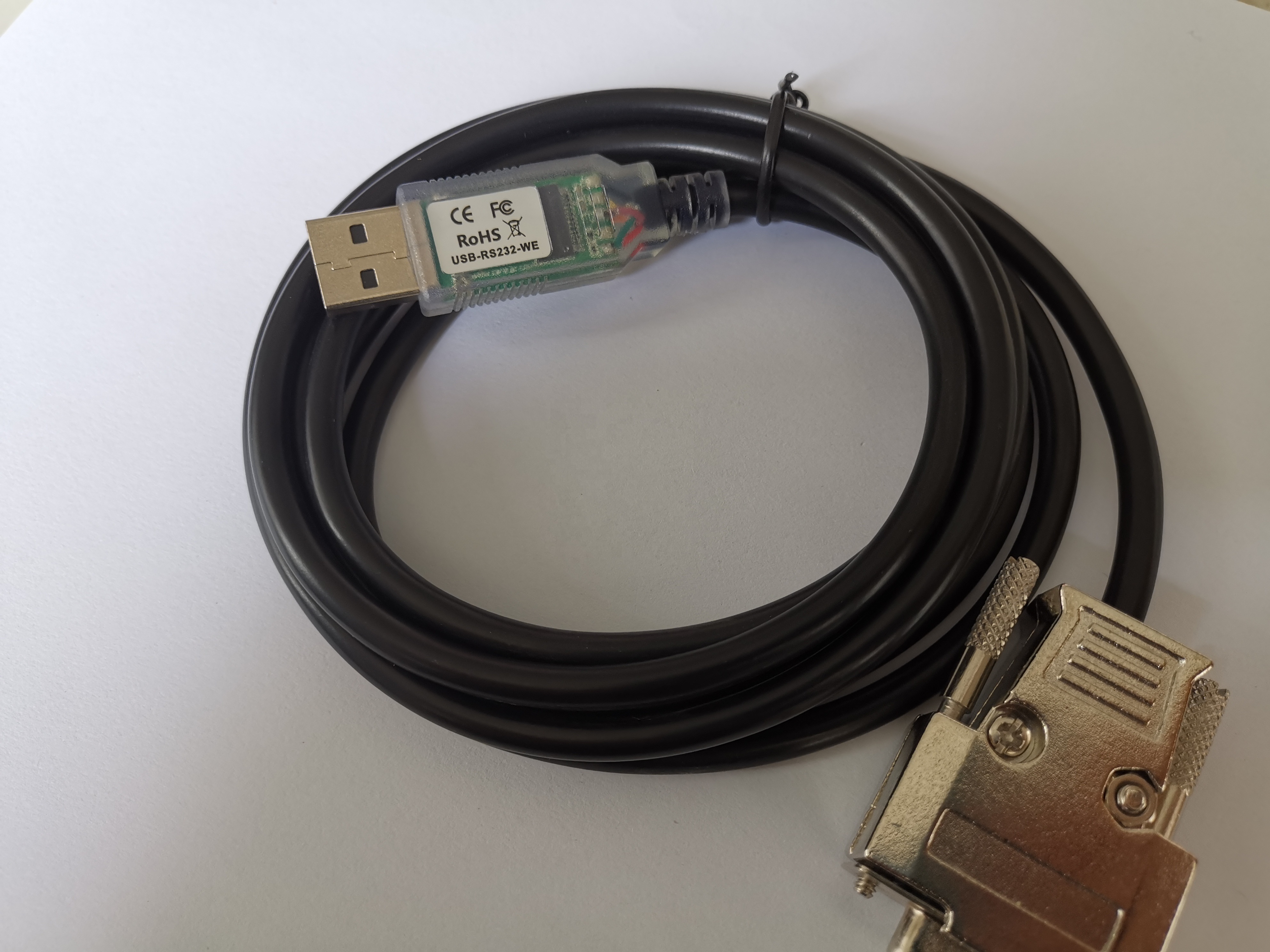

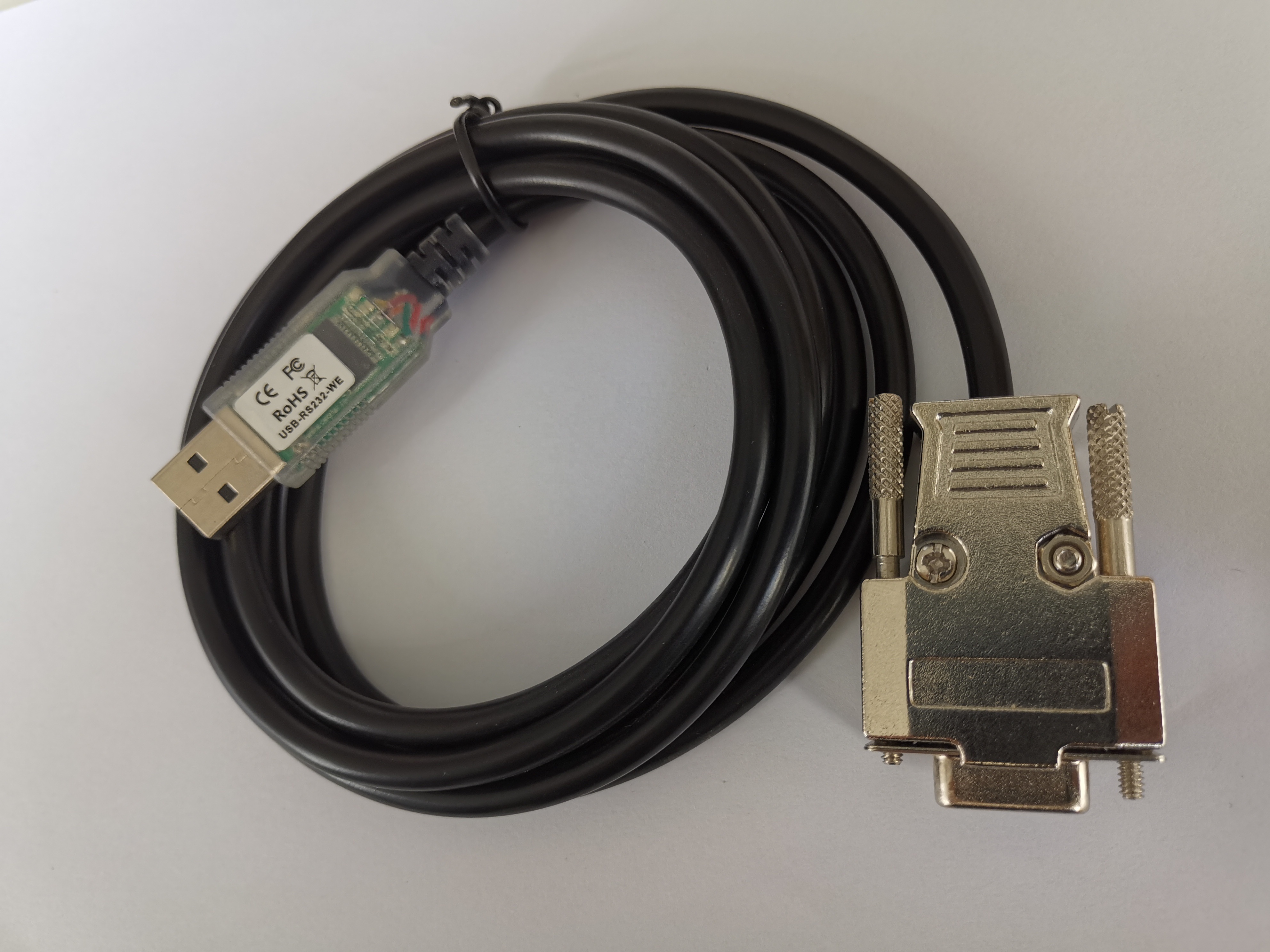

USB-RS232-WE-DB9
PIISUN
| Quantity: | |
|---|---|
USB: The USB to serial adapter supports USB 1.1 and it is compatible with USB 2.0 and USB 3.0 ports.
RS-232 SERIAL CONNECTOR: Connect RS-232 serial devices, such as modems or printers, using the widely supported USB standard found in most laptops and desktops today.
SUPPORTED OPERATING SYSTEMS: The USB to serial converter adapter is compatible with Windows and Mac operating systems. Windows 10, 8.1, 8, 7. Mac OS 10.11, 10.10, 10.9, 10.8, 10.7, 10.6
FLEXIBLE CABLE: Integrated and flexible 540mm (21 in.) USB 2.0 cable accommodates most installation scenarios. Total cable length of 25 inches when including the RS-232 (9pin) and USB Type A.
EASY SETUP: Simple installation in seconds of the USB to Serial 9-Pin Converter Cable. Insert the your computer
| PC Interface | USB 2.0 |
| Device Interface | RS-232 |
| Cable Material | Copper wire |
| Cable Size | 0.35m,0.5m,1.5m,1.8m,3m can be optional |
| Transfer Rate | Standard RS-232 transfer rate |
| Color | black or customized |
| Device Support | RS-232 Interface |
| Package List | Cable, CD Driver is optional |
| System Requirements | Windows7,Windows8/Vista/XP/2000/ME/98SE Linux Mac OS 8.6 or higher |
| Application Area | USB Smart Card Readers,ISDN terminal adapter,Bar code scanner,USB Hardware Modem,PDA-USB data transfer,etc |
| Part Number | Description | End Connector* | Cable details |
| USB-RS232-WE-1800-BT-0.0 | USB to UART cable with RS232 level UART signals. Black cable, Transparent USB connector 0.0 = RED wire is 0V | Wire Ended (no connector) | 1.8m cable,6 core, 26 AWG, diam=5mm |
| USB-RS232-WE-5000-BT-0.0 | Wire Ended (no connector) | 5m cable,6 core, 26AWG, diam=5mm | |
| USB-RS232-WE-1800-BT-3.3 | USB to UART cable with RS232 level UART signals. Black cable, Transparent USB connector 3.3 = RED wire is 3.3V | Wire Ended (no connector) | 1.8m cable,6 core, 26 AWG, diam=5mm |
| USB-RS232-WE-5000-BT-3.3 | Wire Ended (no connector) | 5m cable,6 core, 26AWG, diam=5mm | |
| USB-RS232-WE-1800-BT-5.0 | USB to UART cable with RS232 level UART signals. Black cable, Transparent USB connector 5.0 = RED wire is 5V | Wire Ended (no connector) | 1.8m cable,6 core, 26 AWG, diam=5mm |
| USB-RS232-WE-5000-BT-5.0 | Wire Ended (no connector) | 5m cable,6 core, 26AWG, diam=5mm |
USB: The USB to serial adapter supports USB 1.1 and it is compatible with USB 2.0 and USB 3.0 ports.
RS-232 SERIAL CONNECTOR: Connect RS-232 serial devices, such as modems or printers, using the widely supported USB standard found in most laptops and desktops today.
SUPPORTED OPERATING SYSTEMS: The USB to serial converter adapter is compatible with Windows and Mac operating systems. Windows 10, 8.1, 8, 7. Mac OS 10.11, 10.10, 10.9, 10.8, 10.7, 10.6
FLEXIBLE CABLE: Integrated and flexible 540mm (21 in.) USB 2.0 cable accommodates most installation scenarios. Total cable length of 25 inches when including the RS-232 (9pin) and USB Type A.
EASY SETUP: Simple installation in seconds of the USB to Serial 9-Pin Converter Cable. Insert the your computer
| PC Interface | USB 2.0 |
| Device Interface | RS-232 |
| Cable Material | Copper wire |
| Cable Size | 0.35m,0.5m,1.5m,1.8m,3m can be optional |
| Transfer Rate | Standard RS-232 transfer rate |
| Color | black or customized |
| Device Support | RS-232 Interface |
| Package List | Cable, CD Driver is optional |
| System Requirements | Windows7,Windows8/Vista/XP/2000/ME/98SE Linux Mac OS 8.6 or higher |
| Application Area | USB Smart Card Readers,ISDN terminal adapter,Bar code scanner,USB Hardware Modem,PDA-USB data transfer,etc |
| Part Number | Description | End Connector* | Cable details |
| USB-RS232-WE-1800-BT-0.0 | USB to UART cable with RS232 level UART signals. Black cable, Transparent USB connector 0.0 = RED wire is 0V | Wire Ended (no connector) | 1.8m cable,6 core, 26 AWG, diam=5mm |
| USB-RS232-WE-5000-BT-0.0 | Wire Ended (no connector) | 5m cable,6 core, 26AWG, diam=5mm | |
| USB-RS232-WE-1800-BT-3.3 | USB to UART cable with RS232 level UART signals. Black cable, Transparent USB connector 3.3 = RED wire is 3.3V | Wire Ended (no connector) | 1.8m cable,6 core, 26 AWG, diam=5mm |
| USB-RS232-WE-5000-BT-3.3 | Wire Ended (no connector) | 5m cable,6 core, 26AWG, diam=5mm | |
| USB-RS232-WE-1800-BT-5.0 | USB to UART cable with RS232 level UART signals. Black cable, Transparent USB connector 5.0 = RED wire is 5V | Wire Ended (no connector) | 1.8m cable,6 core, 26 AWG, diam=5mm |
| USB-RS232-WE-5000-BT-5.0 | Wire Ended (no connector) | 5m cable,6 core, 26AWG, diam=5mm |
