USB-RS485-DB9
PIISUN
| Quantity: | |
|---|---|

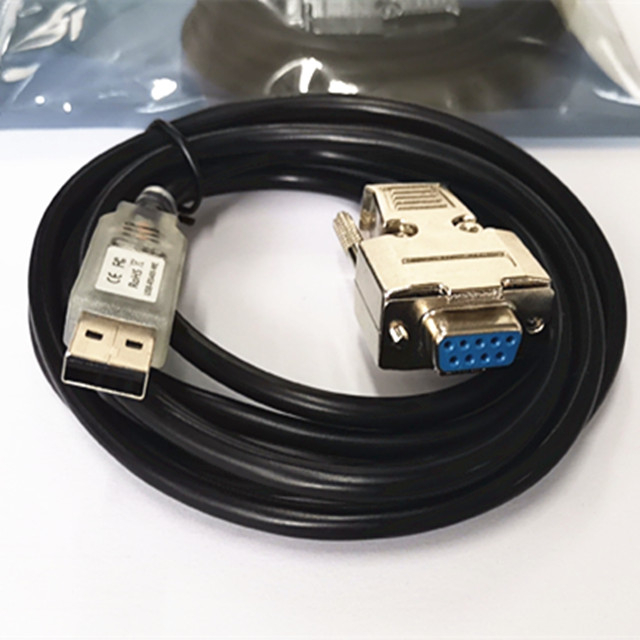

Caratar offers a high-quality USB to RS485/RS422 DB9 Serial Converter Adapter with FTDI chipset, designed for seamless communication between USB and RS485/RS422 devices. This reliable converter eliminates the need for an external power source while providing high-speed data transmission of up to 3 Mbps. Ideal for industries requiring robust communication solutions such as automation, data logging, and industrial control. Get yours now and simplify your serial communication!
| Parameter | Value |
|---|---|
| Chip Type | FT232R |
| Baud Rate | 300 – 921,600 bps |
| Maximum Baud Rate | 3M baud |
| Cable Length | 6ft (1.8m) |
| Connector Type | DB9 Pin |
| Power Supply | Powered from USB port (no external power) |
| Operating Systems | Compatible with all major operating systems |
| Protection | ESD Protection: 600W surge, 15KV static |
| Flow Control | Automatic Send Data Control (no drivers needed) |
| LED Indicators | Power, TX, RX Indicators |
| Included Accessories | Optional screw terminal board for easy connection |
| Connector Type | Free / Stripped End |
| Plug and Play | Yes |
No drivers required. Simply plug the converter into your computer's USB port and start transmitting data without additional setup, saving you time and effort.
Equipped with a genuine FTDI FT232R chipset, ensuring reliable performance and compatibility with a wide range of devices and operating systems.
The converter automatically detects and adjusts the data speed (up to 3 Mbps), allowing for fast and efficient data transfer without manual configuration.
Powered directly from the USB port, eliminating the need for extra cables or power adapters, making it ideal for portable and compact applications.
With 600W surge protection and 15KV static electricity protection, this converter ensures reliable and safe data communication in industrial environments.
Industrial Automation: Used to integrate RS485/RS422 devices into a USB-enabled system for automation and control applications.
Data Logging: Perfect for connecting sensors, meters, and controllers to USB ports for data collection in industrial environments.
Communication Systems: Ideal for connecting RS485/RS422 communication systems to computers, PLCs, and other control devices.
Building Management Systems (BMS): Enables smooth communication for building automation systems using RS485 protocols.
A: The maximum baud rate supported is 3 Mbps, allowing for high-speed data transmission in industrial applications.
A: No, the converter is powered directly from the computer's USB port, eliminating the need for an external power source.
A: Yes, it is compatible with all major operating systems, including Windows, Mac OS, and Linux, for versatile usage.
A: Yes, the converter features ESD protection (600W surge and 15KV static protection), making it suitable for industrial environments.
A: The package includes the USB to RS485/RS422 converter and an optional screw terminal board for easy wiring.
