You can set up hdmi streaming encoder encoders even if you have never tried live broadcasting before. The CARATAR H265/H264 4K HDMI Video Encoder helps you start streaming with ease. You will see technical words explained in simple language.
Tip: If you run into problems, you will find troubleshooting steps to help you fix them quickly.
HDMI streaming encoders change video and sound into digital streams. This helps live broadcasts look smooth and clear.
Hardware encoders like the CARATAR device are easy to use. They let you stream without a strong computer. They are also reliable.
Get ready by finding good cameras and microphones. Make sure you have fast internet and good cables.
Pick video settings that match your internet speed and platform. This helps your stream stay clear and steady.
Always test your stream before you go live. Use the CARATAR encoder’s tools to fix problems and make your broadcast better.
An HDMI streaming encoder encoder takes video and audio from your camera or computer. It changes them into a digital format for live streaming. You use an HDMI cable to connect your video source to the encoder. The encoder makes the video smaller so it can go online without losing quality. The CARATAR H265/H264 4K HDMI Video Encoder lets you stream clear video to sites like YouTube or Facebook Live.
You can use HDMI streaming encoder encoders for many things:
They turn HDMI signals into digital streams for the internet.
They make video smaller right away, so there is little delay.
They support high resolutions like 1080p at 60 frames per second, so your viewers see sharp video.
They work with many streaming platforms, so sharing your live streaming content is easy.
They have features like monitoring outputs, ON AIR lights, and audio meters to help you check your stream.
Tip: With an HDMI streaming encoder encoder, you can stream from far away using mobile data or use it as a high-quality webcam for your computer.
You need an encoder for live streaming because cameras and computers do not send video in a way that works well online. Encoders fix this by making the raw video data smaller. This helps the video stream smoothly, even if your internet is not very fast. For example, a raw video file is very big, but an encoder makes it small enough to stream at about 5 Mbps.
Encoders also help your video look good. They keep a balance between making the video smaller and keeping it clear, so your viewers enjoy watching. You can pick different encoding formats and bitrates to fit your needs. Encoders also let you add overlays, mix audio, and use more than one camera.
There are two main types of encoders:
Hardware encoders like the CARATAR device work by themselves. You do not need a strong computer. They are easy to use and good for beginners.
Software encoders run on your computer. They give you more control but need a powerful computer to work well.
HDMI streaming encoder encoders make live streaming easy, steady, and professional. You can focus on your show while the encoder takes care of the hard parts.
When you look for livestreaming equipment, you will find two encoder types. These are hardware encoder and software encoder. Each one has good and bad points. You should learn how they are different before picking one.
Here is a table that shows how they compare:
Feature | Software Encoder | Hardware Encoder |
|---|---|---|
Cost | Low to Free | High |
Ease of Setup | Easy | Moderate to Complex |
Reliability | Depends on your computer | Very high; works without computer issues |
Performance | Good on strong computers | Consistent and stable |
Multistreaming | Easy to use | May need extra setup |
Target Users | Beginners, creators | Professionals, serious streamers |
A software encoder runs on your computer. You can set it up fast and save money. It is flexible and works well for simple streams. If you want easy livestreaming equipment, software encoder is a good pick. But hardware encoder is more reliable. It does not slow down if your computer is busy. You get steady streaming every time.
A hardware encoder is made for streaming. It works alone and does not need a strong computer. You can trust hardware encoder for long or important broadcasts. Many professionals use hardware encoder devices for stable livestreaming equipment.
Tip: If you want to stream for a long time or need a backup, hardware encoder is the safest choice.
The CARATAR H265/H264 4K HDMI Video Encoder is a great choice for beginners. This hardware encoder gives you clear video and easy controls. You can connect one HDMI source and stream in 4K at 30 frames per second. The encoder supports H.265 and H.264 formats. You can pick the best one for your internet speed.
Here are some features that make this hardware encoder simple to use:
Feature Category | Details |
|---|---|
Video Input | 1 HDMI channel (version 1.4) |
Resolution | Up to 3840×2160 (4K) at 30fps |
Video Encoding | H.265 and H.264 support |
Audio Compression | AAC and MP3 formats |
Streaming Protocols | RTMP, RTMPS, SRT, RTSP, UDP, RTP, HTTP, HLS, FLV, TS, ONVIF |
Multi-Stream | Up to 4 streams at once |
Bit Rate Control | Adjustable from 0.16 to 32 Mbps |
Power Consumption | Less than 5W |
Network Delay | Less than 200ms |
User Interface | Easy web interface |
Upgradeability | Internet firmware updates |
Size and Weight | Compact and lightweight |
Platform Compatibility | Works with YouTube, Facebook Live, Twitch, and more |
You can set up the encoder with a simple web page. The hardware encoder uses little power and keeps your stream smooth. You can send your video to many platforms at once. The CARATAR encoder works with all big streaming sites. You get a hardware encoder that helps you look professional, even if you are new to streaming.
Before you start, gather all your equipment. This makes setup much easier. Use this table to check off what you need for your live broadcast:
Equipment Category | Description | Examples / Notes |
|---|---|---|
Video and Audio Source | Cameras and microphones are the base of your stream. Good cameras and microphones make your stream look and sound better. | Cameras: Basic, Mid-range, High-end; Microphones: Condenser, Dynamic |
Video Encoder | This device changes your video so it can stream online. Hardware encoders are reliable. Software encoders let you change more settings. | CARATAR H265/H264 4K HDMI Video Encoder, OBS Studio, vMix, Wirecast |
Streaming Destination | These are the sites where people watch your stream, like YouTube Live or Twitch. | Pick a platform that fits your audience and needs |
You need fast, steady internet to stream well. Wired internet is best. | Network bonding can use more than one internet source for better streaming | |
Mixing Equipment | This lets you switch between different cameras and microphones. It helps your stream look professional. | Video Switcher: Blackmagic Atem Mini, RGBlink Mini; Audio Mixer: Behringer Xenyx 502, Yamaha MG16 |
Lighting | Good lighting makes your video look clear and bright. You can use ring lights, softboxes, or LED panels. | Lighting Kits: Interfit F5 Fluorescent Kit, GVM-50W2 LED Lighting Kit |
Mobile Accessories | Tripods and gimbals help keep your camera steady. They make mobile streaming look better. | Tripods and gimbals are great for streaming with your phone |
Tip: Always check your equipment before you start. If you forget a cable or adapter, your setup could be delayed.
A strong internet connection is very important for streaming. Your internet must be fast enough for live video. Remember these points:
Your upload speed should be at least 1.5 times your stream’s bitrate.
For 1080p streams, you need at least 5 Mbps upload speed.
For 4K streams, you need at least 25 Mbps upload speed.
Wired internet, like fiber or cable, is better than Wi-Fi or mobile data.
Leave some extra speed for other things using your network.
If you stream to more than one site, you need even more upload speed.
Check if your internet has data limits or speed changes.
Always test your internet before you go live. Plug your encoder into your router with an Ethernet cable for the best connection. Wi-Fi and mobile data can work, but they might make your stream freeze or look bad. A steady internet connection helps your viewers watch smooth, clear video every time.
Start your livestream encoder setup by connecting your devices step by step. First, plug your camera or video source into the HDMI input on the CARATAR encoder. Use a good HDMI cable so your signal stays strong. Next, connect the encoder to your network with an Ethernet cable. This helps your livestream stay steady. Last, turn on the encoder.
People sometimes make mistakes during this part. Here are some common problems and ways to avoid them:
Using HDCP-protected sources can cause a black screen.
Passing HDMI signals through splitters or switchers can break the signal.
Using bad HDMI cables can cause connection problems.
Forgetting to test all HDMI connections before going live.
Tip: Always use cameras or computers that do not have HDCP. Connect your video source straight to the encoder. Test your setup before you start livestreaming.
After you connect your devices, set up the encoder for your stream. The CARATAR encoder has a simple web page you can open on your computer or phone. Here, you can change important settings for your livestream.
Pick the right bitrate, resolution, and frame rate for your video. These settings depend on your internet speed and the platform you want to use. The table below shows the best settings for popular streaming platforms:
Platform | Resolution (max/recommended) | Frame Rate (fps) | Video Bitrate (kbps) | Keyframe Interval (seconds) | Codec | Audio Bitrate (kbps) | Audio Sample Rate (kHz) |
|---|---|---|---|---|---|---|---|
YouTube | 240p - 2160p | up to 60 | 3000 - 40000 (varies by res/fps) | 2 (recommended), max 4 | H.264 | 128 (stereo), 384 (5.1) | 44.1 (stereo), 48 (5.1) |
up to 1920x1080 | max 60 | max 15000 | 2 (recommended), max 4 | H.264 (x264) | 128 (recommended), max 256 | 44.1 or 48 | |
Twitch | 1920x1080 | max 60 | max 6000 | 2 | H.264 (x264) | 96 (recommended), max 160 | any (AAC) |
max 1080p (720p recommended) | max 30 | max 6000 | 2 | H.264 | max 128 | 48 | |
720x1280 (recommended) | 30 (recommended), max 60 | 2250 - 6000 | N/A | N/A | max 256 | 44.1 | |
TikTok | 720p minimum, 1080p recommended | 24 - 60 | ~2500 | N/A | x264 | 160 or 256 | N/A |
X | 1280x720 (recommended), max 1920x1080 | 30 (recommended), max 60 (720p) | 9000 (recommended), max 12000 | 3 | H.264/AVC | max 128 | N/A |
You can also use these quality levels as a guide:
Quality Level | Resolution | Video Bitrate (kbps) | Frame Rate (fps) | Codec | Keyframe Interval | Audio Bitrate (kbps) | Audio Sample Rate (kHz) |
|---|---|---|---|---|---|---|---|
Low | 480x270 | 400 | 25 / 30 | h.264 | 1 second | 64 | 48 |
Medium | 640x360 | 800 - 1200 | 25 / 30 | h.264 | 1 second | 96 | 48 |
High | 960x540 / 854x480 | 1200 - 1500 | 25 / 30 | h.264 | 1 second | 96 | 48 |
HD 720 | 1280x720 | 1500 - 4000 | 25 / 30 | h.264 | 1 second | 128 | 48 |
HD 1080 | 1920x1080 | 4000 - 8000 | 25 / 30 | h.264 | 1 second | 192 | 48 |
4K | 3840x2160 | 8000 - 14000 | 25 / 30 | h.264 | 1 second | 192 | 48 |

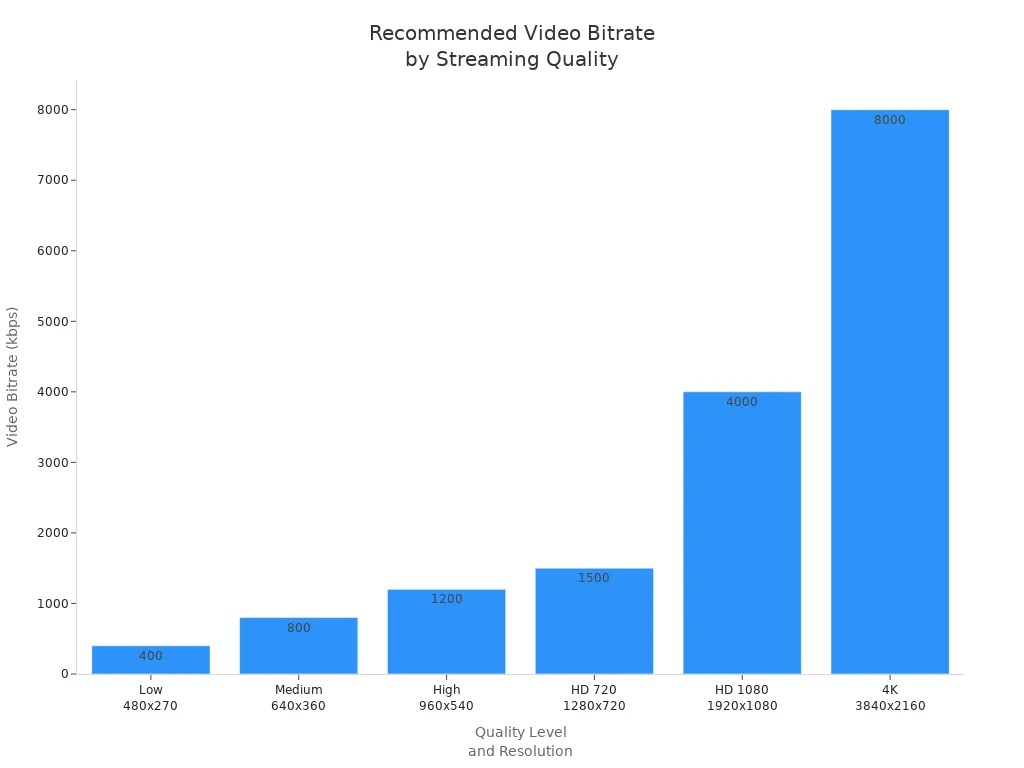

You can see from the chart below how video bitrate goes up with better quality:
Note: Set your bitrate lower if your internet is slow. Match your frame rate to your camera’s output. Do not set your resolution higher than your video source.
The CARATAR encoder gives you many choices for video and audio. You can pick H.265 or H.264 for video compression. H.265 uses less bandwidth but keeps your video looking good. You can set your output resolution up to 4K at 30 frames per second. For audio, you can use HDMI embedded audio or an outside microphone.
You can add overlays like your logo or text to your video. The encoder lets you rotate, flip, or crop your video. You can save a copy of your livestreaming to a TF card for backup. The CARATAR encoder supports up to four streams at once. Each stream can use a different protocol or go to a different platform.
Tip: Use overlays to show your brand or share important info on your livestreaming. Save your video locally so you can edit or share it later.
To finish your streaming setup, link your encoder to your streaming platform. Most platforms, like YouTube or Facebook, give you a stream URL and a stream key. Type these into the CARATAR encoder’s web page.
The encoder supports many streaming protocols. The table below shows the difference between RTMP and HLS, which are popular options:
Feature | RTMP (Real-Time Messaging Protocol) | HLS (HTTP Live Streaming) |
|---|---|---|
Protocol Type | Proprietary protocol by Adobe | HTTP-based protocol by Apple |
Streaming Method | Real-time streaming | Adaptive streaming with segmented chunks |
Latency | Low latency (approx. 2-3 seconds) | Higher latency (approx. 10-30 seconds) |
Device & Browser Support | Limited native browser support; often requires plugins | Broad compatibility across devices and browsers (HTML5, iOS, Android) |
Adaptive Bitrate | Limited support | Designed for adaptive bitrate streaming |
Security | Limited built-in security; encryption can be added | Improved security via HTTPS transport |
Use Cases | Real-time, interactive applications (e.g., live gaming) | Wide distribution, live events, on-demand streaming |
Firewall/Proxy Handling | May face issues with firewalls and proxies | Generally firewall/proxy friendly using standard HTTP ports (80, 443) |
Pick RTMP for low-latency livestreaming or HLS for more device support. The CARATAR encoder also works with SRT, RTSP, UDP, and more. This makes it easy to stream to almost any platform.
You can control your encoder from far away using the web page or app. You can update firmware online and reset the encoder with one click if you need to fix problems. The CARATAR encoder gives you lots of choices and control for any livestreaming project.
Before you go live, you should always run a test stream. This step helps you find and fix problems early. Here is a simple way to test your livestreaming encoder:
Start your stream and watch for quick start times. If your video loads fast, your setup works well.
Play your stream for at least 10 minutes. Watch for any drops in quality or interruptions.
Check your stream on different devices like phones, tablets, and computers. Make sure your video and audio look and sound good everywhere.
Try changing your network speed. See if your stream adjusts smoothly without stopping.
Listen for clear audio. Make sure the sound matches the video with no delay.
Use a video with a timer to check for latency. This helps you see how much delay your viewers might have.
Test your stream URL and make sure it plays back correctly on your chosen platform.
Tip: The CARATAR encoder lets you monitor your stream in real time using its web interface. You can also save a local copy to review later.
Sometimes, you may face issues during livestreaming. Here are some common problems and how you can fix them:
No signal or black screen:
Check all HDMI and network cables. Use high-quality cables and keep them short.
Make sure your video source matches the encoder’s input settings.
Buffering or lag:
Lower your video bitrate in the encoder settings.
Use a wired internet connection for better stability.
Audio problems:
Check if you selected the correct audio source (HDMI or external).
Listen for any noise or delay. Adjust audio settings if needed.
Web interface issues:
If you cannot access the CARATAR web page, check your network and browser. Try clearing your cache or using another browser.
Forgotten settings or errors:
Use the CARATAR one-click reset to restore default settings quickly.
Note: Always monitor your stream for latency, packet drops, and audio-video sync. The CARATAR web interface shows these metrics, helping you keep your livestreaming smooth.
You want your viewers to see clear video. Good video makes your stream fun to watch. Picking the right resolution and bitrate helps a lot. Resolution is how many tiny dots are on the screen. Bitrate is how much data goes out each second. These two settings change how your video looks and streams.
Here are some easy tips for your settings:
Use 1920x1080 (Full HD) for most streams. This gives sharp video and does not use too much internet.
Pick 3840x2160 (4K) if you want super clear video and have fast internet.
Set your bitrate between 4000 and 6000 kbps for HD. For 4K, use 8000 to 14000 kbps.
Always check what bitrate your platform says to use. If you go over, your video might not play well.
Keep your bitrate 35-40% lower than your top upload speed. This helps stop buffering and dropped frames.
Fast video, like games or sports, needs higher bitrate and frame rate.
Wired internet is best for steady, high-quality streaming.
Tip: Lowering your bitrate can help if your internet is slow. But your video might not look as good. Always test your stream before you go live.
The CARATAR encoder has tools to make your video special. You can put overlays like logos, words, or timers on your video. This lets you show your brand or share news with viewers. You can stream to four places at once with multi-streaming. This helps you reach more people without extra gear.
You can also change your video by turning, flipping, or cutting the picture. These choices help your video fit different screens or look cool. The encoder lets you save your stream on a card. You can edit or share it later. You control all these things with an easy web page.
Feature | Benefit |
|---|---|
Overlays | Add branding or info to video |
Multi-stream | Broadcast to several platforms |
Video processing | Adjust image for best results |
Local storage | Save and reuse your video |
Note: Using overlays and multi-streaming makes your stream look pro. It also helps you get more viewers.
You can get your HDMI streaming encoder ready for live streaming by doing these things: First, plug your video source into the encoder. Next, connect the encoder to your platform with the stream key. Then, pick video and audio settings that work for you. After that, test your stream to make sure it works. Finally, start your broadcast and show your content.
Try out new features as you get more comfortable. The CARATAR encoder lets you stream like a pro, even if you are new.
Next Steps | Description |
|---|---|
Try new platforms | Stream on YouTube, Twitch, or Facebook Live |
Use advanced features | Add overlays, stream to more places, and use analytics |
Learn about AI tools | Make your stream better with automatic graphics and switching |
You open the web interface on your computer or phone. You find the firmware update section. You upload the new firmware file and follow the on-screen steps. The encoder restarts after the update.
Yes, you can. The CARATAR encoder supports up to four streams at once. You set each stream to a different platform using the web interface.
Check your resolution and bitrate settings. Make sure you set them high enough for clear video. Use a good HDMI cable. Test your internet speed to avoid low-quality streams.
You use the encoder’s web interface. You upload your logo or type your text. You place it where you want on the video. The encoder adds it to your live stream automatically.
Yes, you can. Insert a TF card into the encoder. Turn on local recording in the settings. The encoder saves your video so you can watch or edit it later.
