In the realm of audiovisual technology, the HDMI matrix switch stands as a pivotal device, seamlessly integrating multiple HDMI sources with multiple displays. Unlike traditional HDMI switches or splitters, which offer limited routing capabilities, an HDMI matrix switch provides unparalleled flexibility, allowing any input to be directed to any output. This versatility makes it indispensable in various settings, from home theaters to commercial establishments.
An HDMI matrix switch is a sophisticated device that enables the routing of HDMI signals from multiple input sources to multiple output displays. It functions as a central hub, allowing users to control which source is displayed on which screen, without the need to physically disconnect and reconnect cables.

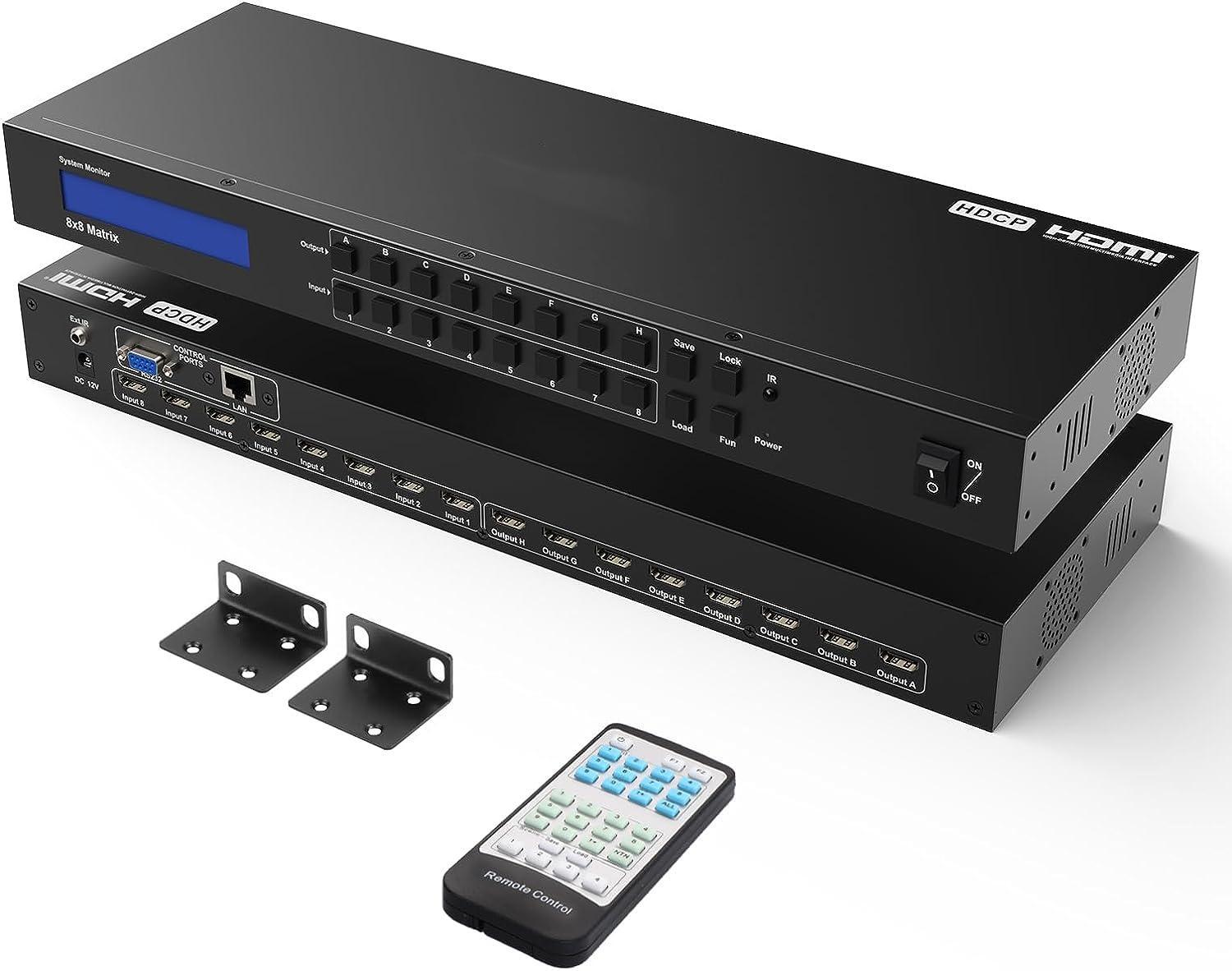

Multiple Inputs and Outputs: Typically, HDMI matrix switches come in configurations like 4x4, 8x8, or 16x16, indicating the number of input and output ports. For instance, a 4x4 matrix switch has four HDMI inputs and four HDMI outputs, allowing any of the four sources to be displayed on any of the four screens.
Independent Routing: Each input can be routed to any output independently, enabling different content to be shown on each display simultaneously.
Control Methods: Users can control the matrix switch via front panel buttons, infrared (IR) remote controls, RS-232 serial commands, or web-based interfaces, depending on the model.
Audio Support: Many HDMI matrix switches support audio extraction and embedding, allowing audio signals to be routed separately from video signals.
The versatility of HDMI matrix switches makes them suitable for various applications:
Home Theaters: Distribute content from Blu-ray players, gaming consoles, and streaming devices to multiple TVs or projectors.
Conference Rooms: Manage presentations by routing content from laptops or video conferencing systems to different displays.
Retail Environments: Display promotional videos on multiple screens throughout a store.
Educational Institutions: Direct content from various sources to different classrooms or auditoriums.
An HDMI KVM matrix switch combines the functionalities of an HDMI matrix switch with that of a KVM (Keyboard, Video, Mouse) switch. This integration allows users to control multiple computers from a single set of peripherals (keyboard, video monitor, and mouse), while also managing which computer's output is displayed on which screen.
Centralized Control: Manage multiple computers and displays from a single location, enhancing efficiency in environments like control rooms or server farms.
Space-Saving: Reduce the need for multiple sets of peripherals, minimizing desk clutter.
Enhanced Productivity: Switch between computers and displays seamlessly, improving workflow in multi-tasking scenarios.
Data Centers: IT administrators can monitor and control multiple servers from a single console.
Broadcast Studios: Operators can manage various video feeds and control systems from centralized workstations.
Security Operations Centers: Security personnel can monitor multiple surveillance feeds and control cameras from a unified interface.
| Feature | HDMI Matrix Switch | HDMI KVM Matrix Switch |
|---|---|---|
| Primary Function | Routes HDMI signals between sources and displays | Routes HDMI signals and allows control of multiple computers |
| Control Method | Front panel, remote control, RS-232, web interface | Keyboard, video monitor, and mouse control |
| Audio Support | Yes (varies by model) | Yes (varies by model) |
| Peripheral Sharing | No | Yes |
| Ideal For | Home theaters, conference rooms, retail environments | Data centers, broadcast studios, security operations centers |
Choosing the appropriate HDMI matrix switch involves considering several factors:
Number of Inputs and Outputs: Assess the number of devices you need to connect and ensure the matrix switch can accommodate them.
Resolution Support: Ensure the switch supports the resolution and refresh rate required for your displays, such as 1080p, 4K, or 8K.
Audio Requirements: Determine if you need features like audio extraction, embedding, or support for surround sound formats.
Control Options: Consider how you wish to control the switch—via physical buttons, remote control, or network interfaces.
Compatibility: Ensure the switch is compatible with your existing devices and supports necessary standards like HDCP (High-bandwidth Digital Content Protection).
The HDMI matrix switch is an essential tool for managing multiple HDMI sources and displays, offering flexibility and control in various environments. When combined with KVM functionality, it becomes an even more powerful solution for centralized management of computers and displays. By carefully considering your specific needs and the features of available models, you can select the right HDMI matrix switch to enhance your audiovisual setup.
1. What is the difference between an HDMI switch and an HDMI matrix switch?
An HDMI switch allows multiple HDMI sources to be connected to a single display, enabling the user to switch between them. In contrast, an HDMI matrix switch allows multiple sources to be routed to multiple displays independently, offering greater flexibility.
2. Can an HDMI matrix switch support 4K resolution?
Yes, many modern HDMI matrix switches support 4K resolution at 60Hz, ensuring high-quality video output.
3. Is it possible to control multiple computers using a single keyboard and mouse with an HDMI matrix switch?
While an HDMI matrix switch routes video signals, it does not provide control over multiple computers. For controlling multiple computers with a single set of peripherals, an HDMI KVM matrix switch is required.
4. Can HDMI matrix switches be controlled remotely?
Yes, many HDMI matrix switches offer remote control options via RS-232 serial commands, web interfaces, or mobile applications, depending on the model.
5. Are HDMI matrix switches compatible with all HDMI devices?
Most HDMI matrix switches are compatible with a wide range of HDMI devices. However, it's essential to check the specifications for compatibility with your specific devices, especially concerning features like HDCP support and audio formats.
